Black Copper BC405U

BC405U

New product

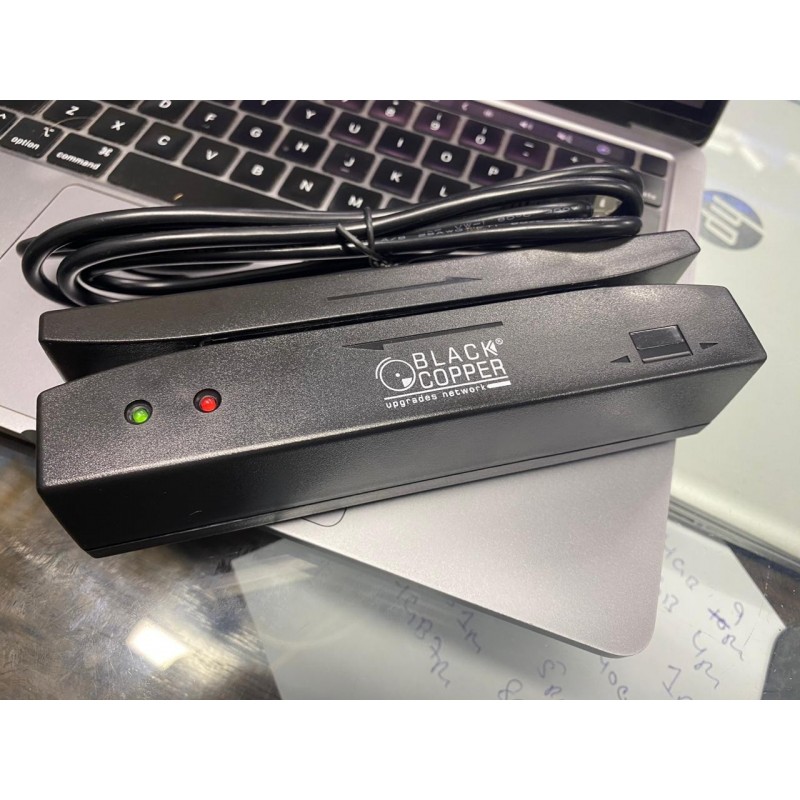

Black Copper BC405U USB Barcode Slot Reader is a contact card solution using barcode technology which can had been successfully integrated with any windows, Black Copper BC405U USB Barcode Slot Reader is best performance reader & good quality.

More details

In Stock

Whatsapp MB WhatsApp

Rs 6,760

Call | Whatsapp

Karachi: +92-300-0339084 , +92-300-0778766 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Black Copper BC405U Features and Benefits

Features:

Black Copper BC405U Description

Product Information:

The Black Copper BC405U USB bar code slot reader is a flexible, cost effective solution when you need a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the BC405U barcode slot reader is capable of reading any bar coded identification badge. Its sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. Its water-resistant base, rugged housing, and IP54-rated sealing make the BC405U a popular choice in any environment. Decoded versions are easy to use and configure.

Black Copper BC405U barcode slot reader can read the most commonly used barcode types such as UPC/EAN/JAN, Code 128, Code 39, Interleave 25 and codabar. It is an ideal solution when you have limited space. Through the USB interface, it works perfectly with any USB device to read the contact card. The price/performance is great with a life-cycle of up to 1,000,000 passes and a scan rate up to 1,000 mm per second.

  • 90mm bar code slot reader

  • USB interface

  • Reading speed of 100-1000mm/sec

  • Bi-directional

  • scanning height: 10.5mm

  • Light speed: IR LED 940nm



    Specification

  • Light Source: IR 940nm
  • Operating Voltage: DC 5V ±5%

  •  Power Consumption: 80mA

  •  Sensor Photo Diode

  • Scanning Speed: 100-1000mm

  • Scanning Height: 10.5mm

  • Resolution: 0.15mm (6mil)

  • Interface: USB

  • Ambient Light: 10000 LUX Max. (Fluorescent lamp)

  •  Reading Indicator: Beepe

  • Operating Temp: 0 °C to 40 °C

  • Storage Temp: -20 °C to 60 °

  • Relative Humidity: 20% to 85% (Non-Condensing)

  • Housing Material: ABS Plastic

  • Color: Black

  • Cable Straight: 5 feet
