Black Copper BC-CS90HD
BCCS90HD
New product

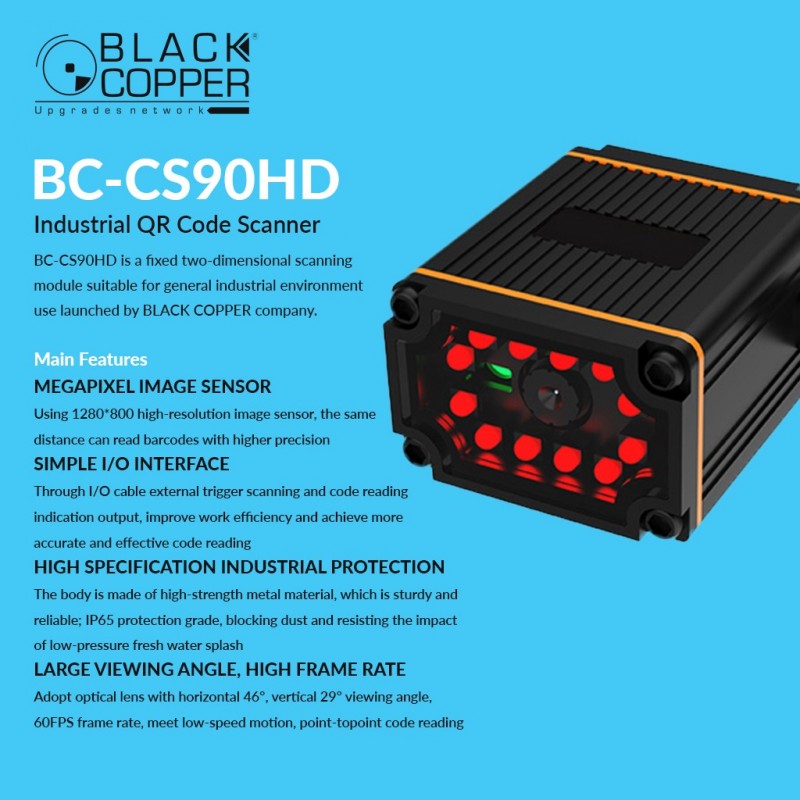

Industrial QR Code Scanner
BC-CS90HD is a fixed two-dimensional scanning module suitable for general industrial environment use launched by BLACK COPPER company.
In Stock
Warning: Last items in stock!
WhatsApp
More info
Product Information:
Black Copper BC-CS90HD Features and Benefits
Features:
Black Copper BC-CS90HD Description
It is equipped with a 1280*800 megapixel C-MOS sensor with excellent scanning recognition. BC-CS90HD has an industrial grade of IP65, and it can maintain good working conditions for a long time even in a humid or dusty working environment.
Features
MEGAPIXEL IMAGE SENSOR
Using 1280*800 high-resolution image sensor, the same distance can read barcodes with higher precision
SIMPLE I/O INTERFACE
Through I/O cable external trigger scanning and code reading indication output, improve work efficiency and achieve more accurate and effective code reading
HIGH SPECIFICATION INDUSTRIAL PROTECTION
The body is made of high-strength metal material, which is sturdy and reliable; IP65 protection grade, blocking dust and resisting the impact of low-pressure fresh water splash
LARGE VIEWING ANGLE, HIGH FRAME RATE
Adopt optical lens with horizontal 46°, vertical 29° viewing angle, 60FPS frame rate, meet low-speed motion, point-to-point code reading
Parameters of Production Line Barcode Scanner
|
Scan Performance |
Resolution |
1280 * 800 |
||
|
Field of view |
Horizontal 46° (H)，Vertical 29° (V) |
|||
|
Illumination |
High brightness red light/High brightness white light |
|||
|
Aiming |
Green LED aiming |
|||
|
Scan Mode |
Auto sense; external pulse mode; continuous mode; serial command mode |
|||
|
Symbologies |
1D |
UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited , Composite Code-A , Composite Code-B , Composite Code-C |
||
|
2D |
PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , MaxiCode |
|||
|
Typical depth of field |
Versio n |
RK4000-SR |
RK4000-HD |
|
|
DOF |
Code 39 (5mil) : 60 mm ~ 250mm EAN-13 (13mil) : 50 mm~400mm QR (10 mil) : 35 mm ~ 130 mm |
Code 39 (3 mil) : 50 mm ~ 90 mm Data Matrix (10 mil) : 40 mm ~ 150 mm QR (7 mil) : 35 mm ~ 120 mm |
||
|
Resol ution |
1D : ≥4 mil ; 2D : ≥9 mil |
1D : ≥3 mil ; 2D : ≥7 mil |
||
|
Contrast |
≥20% (UPC/EAN 100% , PCS 90%) |
|||
|
Mechanical / Electrical Parameters |
Dimensions (mm) |
36（W）×43（D）×24（H） |
||
|
Enclosure |
Aluminum alloy |
|||
|
Sealing |
IP65 |
|||
|
Indicator |
Buzzer, LED |
|||
|
Interface |
RS232，USB (HID ; CDC)，Ethernet（TCP/UDP/Modbus） |
|||
|
Power |
5-36 VDC |
|||
|
Input |
1 way out photoelectric coupled isolate input (NPN / PNP /relay) |
|||
|
Output |
two ways out photoelectric coupled isolate output (Good ; NG) |
|||
|
Current@5 VDC |
Working current 300 mA ±5%（typical）, 450 mA ±5%（Max） Standby current 100 mA ±5% |
|||
|
Environmental |
Storage |
-40℃~+70℃ |
||
|
Working |
-20℃~+50℃ |
|||
|
ESD |
±20 kV (air discharge) , (±8 kV(direct discharge） |
|||
|
Certification |
CE EN55022 , FCC Part 15 Class B , CE EMC Class B |
|||
