Black Copper BC-8807

BC8807

New product

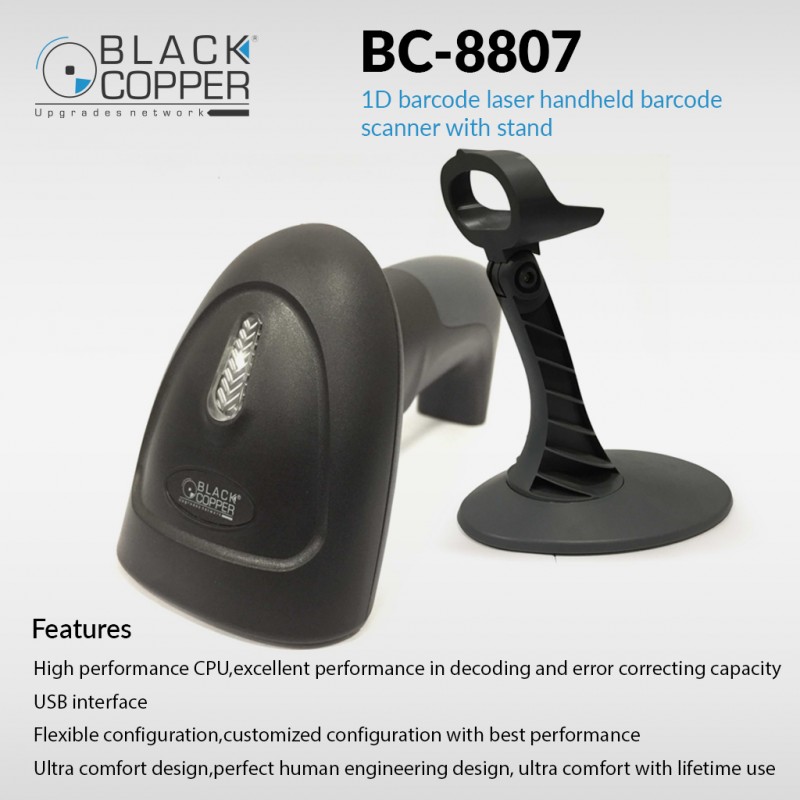

USB BC8807 1D barcode laser handheld barcode scanner with stand

High performance CPU,excellent performance in decoding and error correcting capacity
USB interface
Flexible configuration,customized configuration with best performance

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 8,840

Call | Whatsapp

Karachi: +92-300-0339084 , +92-300-0778766 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Black Copper BC-8807 Features and Benefits

Features:

Black Copper BC-8807 Description

Features
High performance CPU,excellent performance in decoding and error correcting capacity
USB interface
Flexible configuration,customized configuration with best performance
Ultra comfort design,perfect human engineering design, ultra comfort with lifetime use
Best price value,high performanceCPU performance with only 8 bits CPU price
Diversified customized features,great match for customer applications, greatly improve work efficiency
Achieving one-to-many communications (one PC/PLC host to many barcode scanners),Good for applications as multiple barcode scanners linked to the same network
Complement checking code for barcode data and command,more secure for data and command transfer
Creative user defined barcode technology,user defined barcode binding with unique ID barcode scanner

Application and Solution
Clothing, retail chain store, warehouse management, e-business, commercial retail, logistics express, etc



    SR(W03) HP(W01) S01
Operating indicators  Visual 1 LED(Blue)
Non-visual Buzzer
Communications • USB(Ver. 1.1 HID Keyboard)
Power Voltage requirement 5V± 10%
Current consumption 85mA (typical use), max. 150mA 86mA(typical use), max:114mA

Barcode scanner Optics		 Light source 650 nm visible laser diode
Scan method Bi-directional scanning
Scan rate 100scans/sec 200scans/sec 104scans/sec±12scans/sec
Trigger mode Manual, continuous read, multiple read, auto-trigger, serial software trigger
Reading pitch angle (pitch)-50 to 0°, 0 to +50° (pitch)-35 to 0°, 0 to +35° 47° ± 3° default / 35° ± 3° reduced
(skew)-65 to 0°, 0 to +65° (skew)-50 to-8°, +8 to+50°
(tilt)-35 to 0°, 0 to +35° (tilt)-20 to 0°, 0 to +20°
Curvature R>15 mm (EAN8),R>20 mm (EAN13)
Min. resolution PCS 0.9:0.101 mm / 4 mil,Min. PCS value: 0.35
Physical Dimensions 90.5 x 69.8 x 160 mm/ 3.56 x 2.75 x 6.30 in (d x w x h)
Weight body 146g/ 5.15 oz (excl. cable)
  Case PC, Black or Grey
Durability Temperature -20°to 65°C /-4°to 149°F(operation) ,- 30°to 70°C / - 22°to 158°F(storage) -20° to 60° C/-4° to 140° F(operation)
Humidity 20 - 85%(operation), 20 - 90%(storage)
Ambient light immunity Fluorescent 3000 lx max, Direct sun 50,000 lx max, Incandescent 3000 lx max 10,000 ft. candles
Drop test 1.5 m / 5 ft drop onto concrete surface
  Protection rate IP 54
Regulatory & Safety Product compliance IEC 60825,UL 60950, EN/IEC 60950,FCC Part 15 Class B, EN 55024/CISPR 22, AS 3548, VCCI, RoHS Compliant,GB7247.1-2001
Enclosed items Cable(USB,RS232,RS485), User Guide, DC power supply (RS232,RS485), Scanner Stand(Sold separately)
Supported Symbologies Barcode(1D)
EAN13,EAN8,UPC-A,UPC-E,CODABAR(NW-7),CODE39,CODE93,
INTERLEAVED_2OF5,STANDARD_2OF5,MATRIX_2OF5,CODE128,EAN128(GS1-128),CODE11,Chinese_Post
