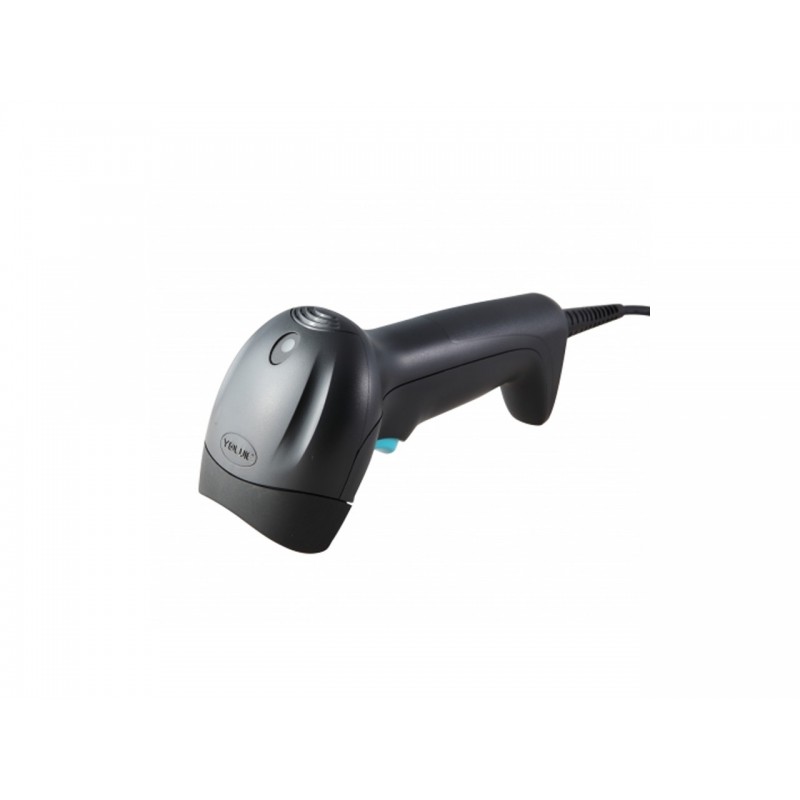

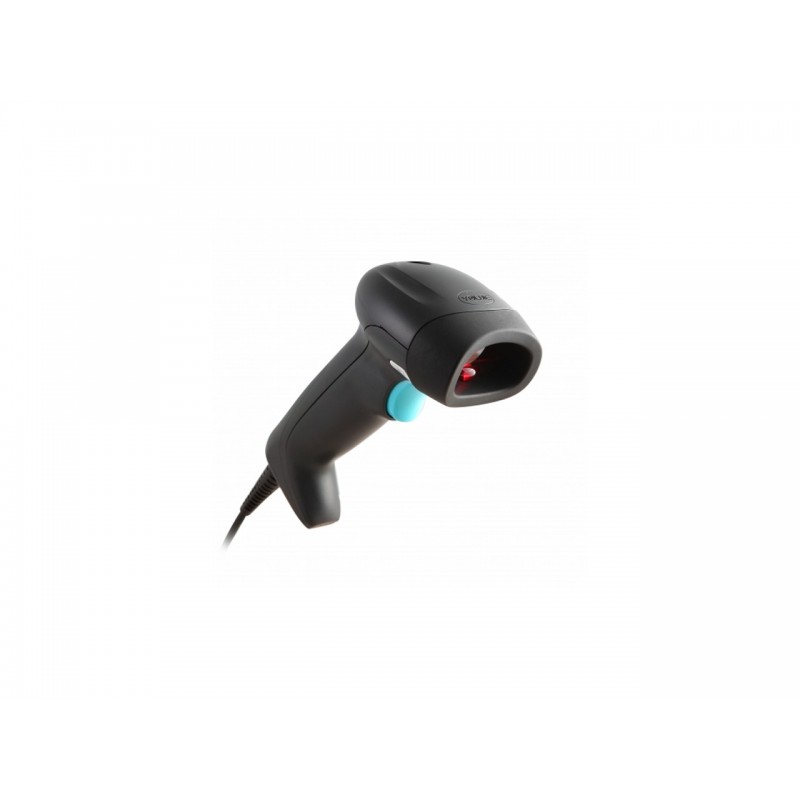

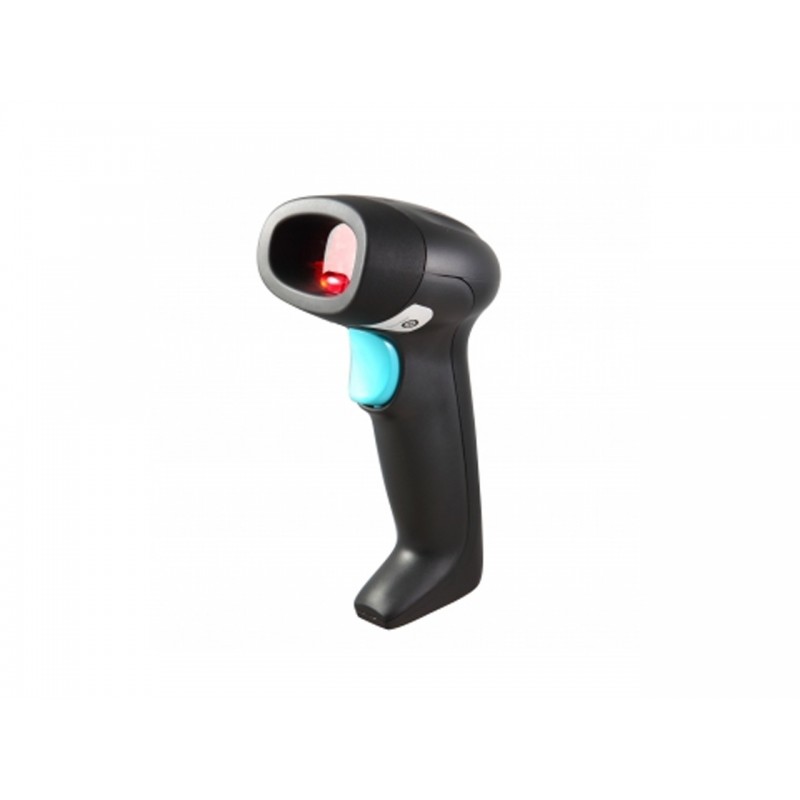

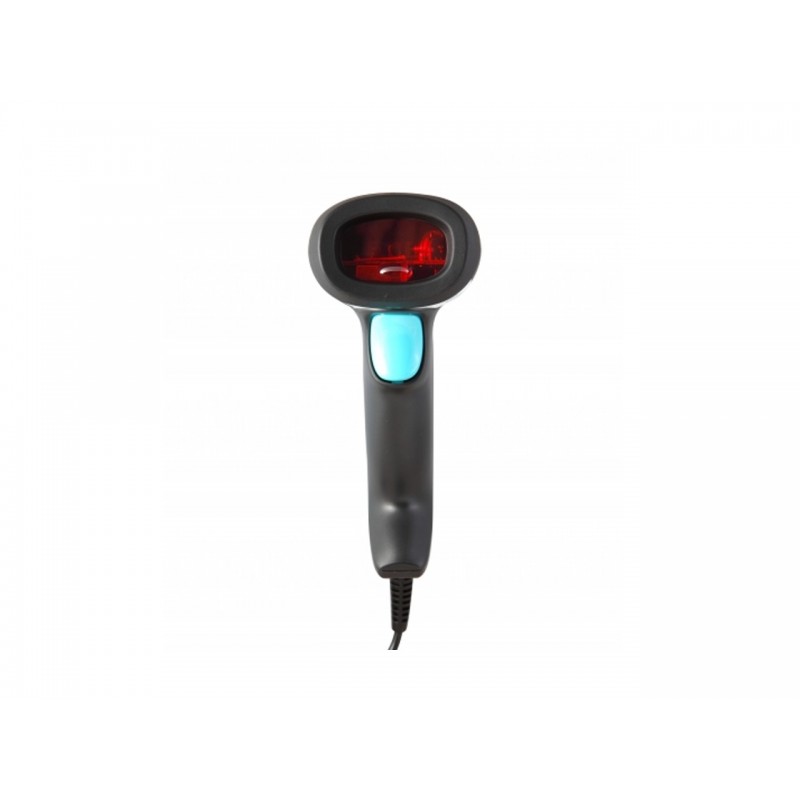

About Youjie As a second brand of Honeywell Scanning & Mobility, Youjie targets the rapid growth of mid- to low- markets in automatic data collection industry, providing a better alternative to users who look for easy data collection solutions. Designed with cost effectiveness in mind, Youjie products features better performance and reliability compared to other low-cost vendors. Youjie products can be widely used in a wide range of applications, including retail, manufacturing, logistics, government and office automation. Honeywell Youjie ZL2200 Single-line Laser Barcode Scanner Youjie ZL2200 is a cost-effective single-line laser scanner with optimized performance.

As an entry level bar code scanner targeting the low to middle segment of the AIDC markets, ZL2200 is ideal for various scanning applications like retail POS for small supermarkets and convenience stores, document scanning for office automation, and mail and parcels processing for post offices. Features - Scan performance at an affordable price ratio: Highly cost effective, ideal for small- to medium-sized enterprises. - Proprietary scanning platform: Revolutionary scanning platform design with pending intellectual property rights (IPR). - Outstanding scanning performance: Provides faster scanning, larger depth of field, wider scanning angle and zero error rates.
-Ergonomic form factor design: Gun shape design comfortably fits in any hand size, reducing fatigue over long time use - High compatibility: “Plug-and-play” with “no extra setting” enables quick integration with various office devices.

Specification Mechanical
Dimensions: 165mm x 65mm x 80mm
Weight: 182g Electrical
Input Voltage: 5 VDC ± 0.25 V
Power (typical): 700mW (140 mA@ 5V, standby) 1000mW (200 mA@ 5V, decoding)

Electromagnetic Compatibility: EN55022 Class B
Environmental Operating Temperature: 0°C - 40°C
Storage Temperature: -40°C - 60°C
Humidity: 5% to 95% relative humidity, non-condensing
Light: 0 - 100,000 LUX
Drop: Designed to withstand 1m drops
Environmental sealing: sealed to resist airborne particulate contaminants
Performance Light Source: Visible Laser Diode, 650 nm ± 10 nm
Visual Indicators: Red= laser shines, ready to scan; Green= successfully decoding
System Interface: USB, Scan
Pattern: single line
Scan Speed: 100 scan lines per second
Scan Angle: horizontal 55°
Print Contrast: 20% minimum reflectance difference. Pitch
Skew: 68°, 52°
Decode Capabilities: All standard 1D bar codes
Typical Performance* Narrow Width Depth of Field UPC-A 13 mil 17mm - 232 mm 7.5 mil 20mm -163mm 5mil 47mm -111mm

Resolution: 4.5 mil *Performance may be impacted by bar code quality and environmental conditions
