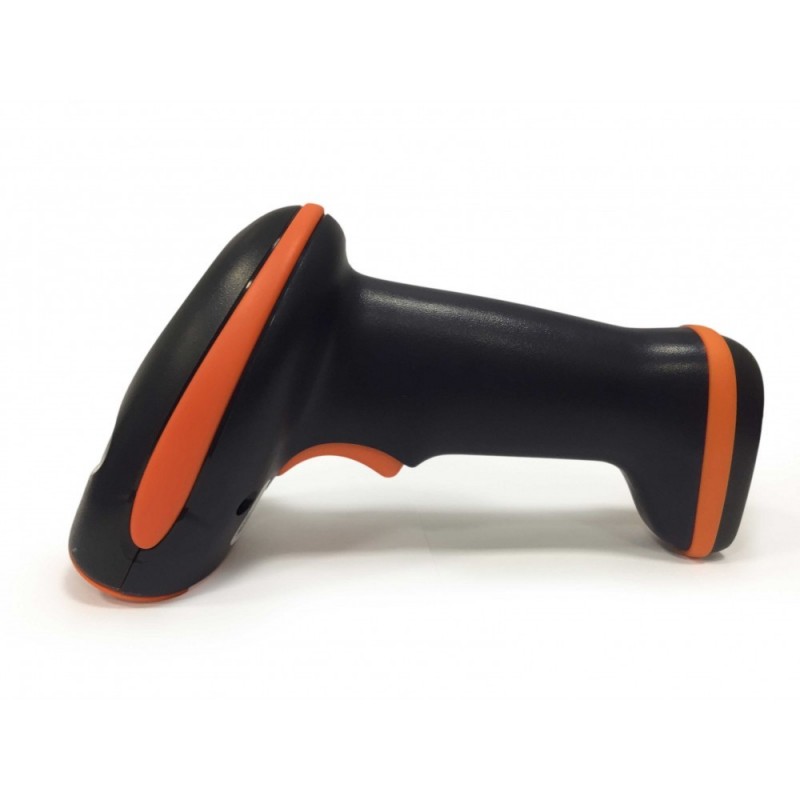

Black Copper BC-8850-AR Freedom

BC8850AR

New product

Black Copper BC-8850-AR Freedom Auto Trigger

◆ To provide faster, more secure, more simple

◆ Provide a higher speed

◆ Provide a higher speed, more secure

◆ Rugged BC8850AR Barcode Scanner

◆ USB Interface

◆ Auto Barcode Scan

More details

In Stock

Whatsapp MB WhatsApp

Rs 9,880

Call | Whatsapp

Karachi: +92-300-0339084 , +92-300-0778766 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Black Copper BC-8850-AR Freedom Features and Benefits

Features:

Black Copper BC-8850-AR Freedom Description

Product Description

The BC-8850-AR features the accuracy of an optical laser, with a compact, ergonomic, and affordable design. The BC-8850-AR features technical advancements that eliminate internal vibrating mirrors and moving parts for better shock absorption, longevity, and durability. Black Copper barcode scanners combine high performance, accuracy, and true value. This USB version offers a best-in-class solution for retail, point of sale, Office, Light Industrial, Warehouse, Libraries, Medical, Legal office, Government, marketing and any repetitive application where time and precision are critical factors in helping businesses streamline their workflow.

Impact Resistant
With the scanner's durable CCD sensor engine design and its durable ABS material, the BC-8850-AR is less likely to become damaged due to accidental drops from as high as 1.2m off the ground.
Superior CCD Sensor with Scanning Performance at 350 Scans Per Second
The CCD sensor can scan the majority of 1D symbologies at a comfortable distance of up to 12 inches away. The 350 scans per second rate offers fast and accurate scanning results for faster productivity and reliability.
Scanning Range
The CCD sensor allows a wider and longer scan field of up to 12 inches in scanning range.

Specification

Operating indicators

Visual: 2 LEDs (Red, Blue)

Non-visual:Buzzer
Communications USB(Ver. 1.1 HID Keyboard)
Sensor resolution 752*480 pixels
Light source 632nm LEDs
Aiming light  617nm LEDs
Scan method CMOS array sensor
Fixed focus distance 39° (H) x 25° (V)

Motion capability <= 63.5cm/25in/s
Scan rate Up to 60 fps
Scan reading angle Yaw: ±30° or greater
Pitch: ±70° or greater
Roll: ±45°
Min. resolution C39 at PCS 0.9): 5mil (0.127mm)
Min.print contrast Minimum 25% minimum reflective difference
Image file formats BMP, TIFF, and JPEG
Voltage 5 VDC±10% @260mA
Current consumption 120mA (typical use), max. 250mA
Temperature 0°C to 40°C (operation),
-40°C to 70°C (storage)
Humidity 5% to 95%, non-condensing
Ambient light immunity 86,000 lux (direct sunlight), 1600 lux (Indoor light)
Drop test 1.8 m (6 ft) drop onto concrete surface
Protection rate IP54
MBTF  53,310 hours
Dimensions 90.5 x 69.8 x 160 mm / 3.56 x 2.75 x 6.30 in (d x w x h)
Weight body 193g / 6.81 oz (include cable)
Case PC, Black or Grey
Product Compliance CE, FCC, IEC 60825-1 Class 2, GB7247.1-2001
Enclosed items Cable (USB, RS232), User Guide, DC power supply (RS232)
Application and Solution Self-Service Machine, Medical and Diagnosis Equipment, Lottery Machine, Automatic Manufacture Line, File Management System, etc.
1D UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
2D PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, Maxicode, QR Code, MicroQR, Aztec
