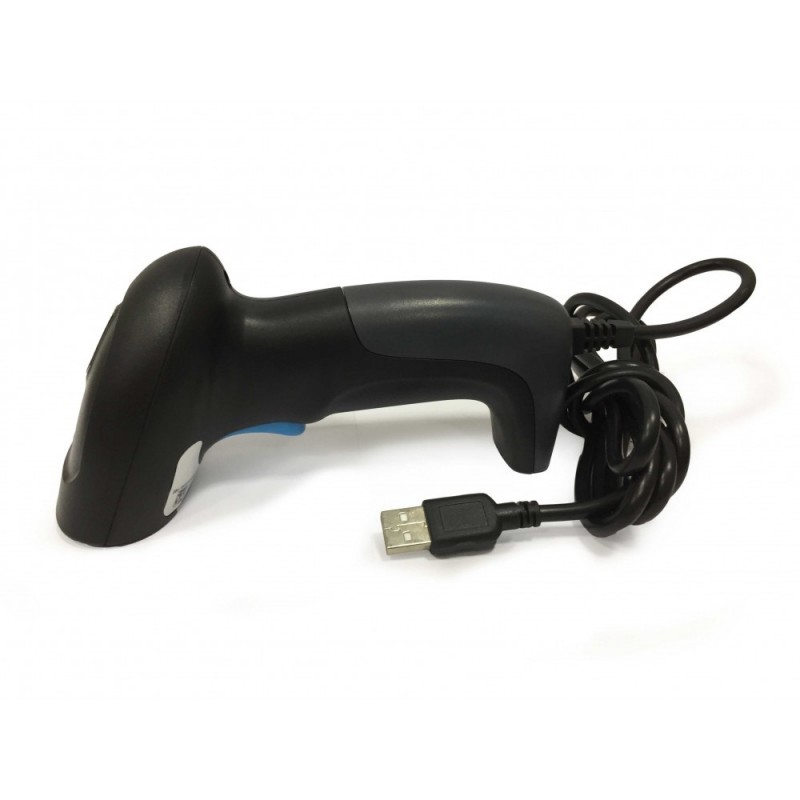

The BC-8804 Finest features the accuracy of optical Laser, with a compact, ergonomic and affordable design. The BC-8804 Finest features technical advancements that eliminate internal vibrating mirrors and moving parts for better shock absorption,longevity and durability. BLACKCOPPER barcode scanners combine high performance, accuracy, and true value. This USB version offers a best-in-class solution for retail, point of sale, Office, Light Industrial, Warehouse, Libraries, Medical, Legal office, Government, marketing and any repetitive application where time and precision are critical factors in helping businesses streamline their workflow.

Superior Laser Sensor with Scanning Performance at 120 Scans Per Second
The Laser sensor can scan the majority of 1D symbologies at a comfortable distance of up to 12 inches away.The 120
scans per second rate offers fast and accurate scanning results for faster productivity and reliability.

Scanning Range
The Laser sensor allows a wider and longer scan field of up to 12 inches of scanning range.

Specifications

PHYSICAL CHARACTERISTICS

Dimensions
66 mm x 82 mm x 162 mm (L*W*H)
Weight
138.8g


ENVIRONMENTAL

Temp
-20°to 65°C / -4°to 149°F(operation)
-30°to 70°C /-22°to 158°F(storage)
Humidity
5%- 90% (operation) 5% - 90% (storage)
Ambient light
Fluorescent light 4,000 lx max , direct sun light 80,000 lx max , white light 4,000 lx max
Shock drop test
1.8m drop onto concrete surface
MBTF
30,000 hours except laser diode(10,000 hours) and except mirror scan unit(10,000 hours)


ELECTRICAL

Interface
USB HID KEYBOARD/USB VCP/RS-232/RS-485
Voltage requirement
DC 5V±10%
Current consumption
Max: 135mA


OPTICAL CHARACTERISTICS

Light source
650nm visible laser diode
Scan Method
Bi-directional


PERFORMANCE CHARACTERISTICS

Operating mode
Single read
Multiple read
Continuous read
Scan rate
100±20 scans/second
Decode angle
Pitch angle:±35°
Skew angle:±75°
Tilt angle:±40°
Curvature
R≥15 mm (EAN8)，R≥20 mm (EAN13)（resolution=0.26mm，PCS=0.9）
Min .PCS value
>30%UPC/EAN 13（13mil）
Min.Resolution
SR:0127mm/5mil(PCS 0.9)
HD:0.08mm/3.2mil（PCS 0.9）
Error Rate
1／500W
Language
Multiple languages


SUPPORTED BARCODE SYMBOLOGIES

EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2OF5，
STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128，CODE 11，CHINESE POST
