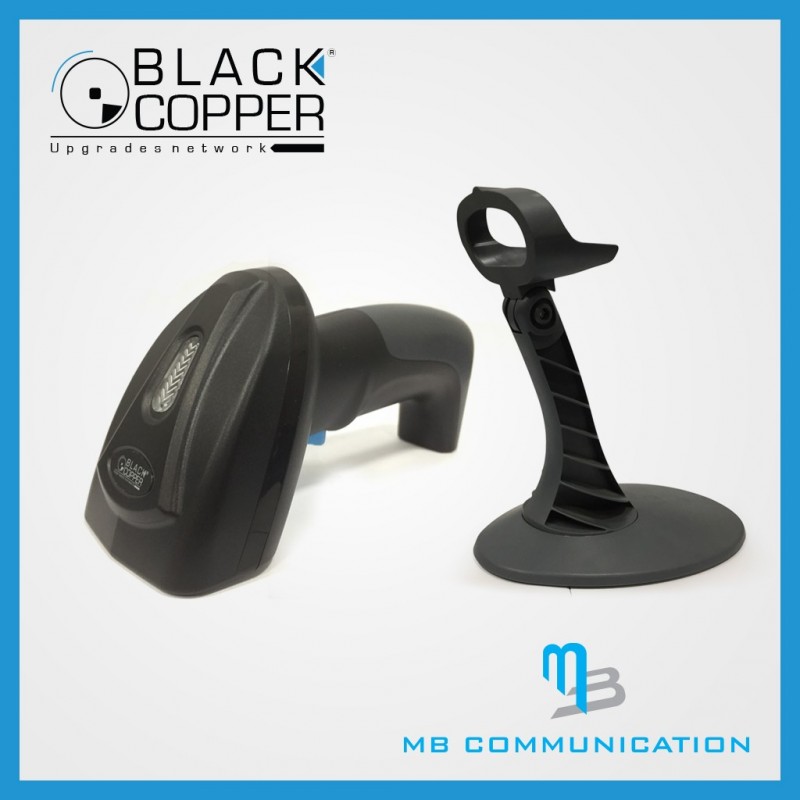

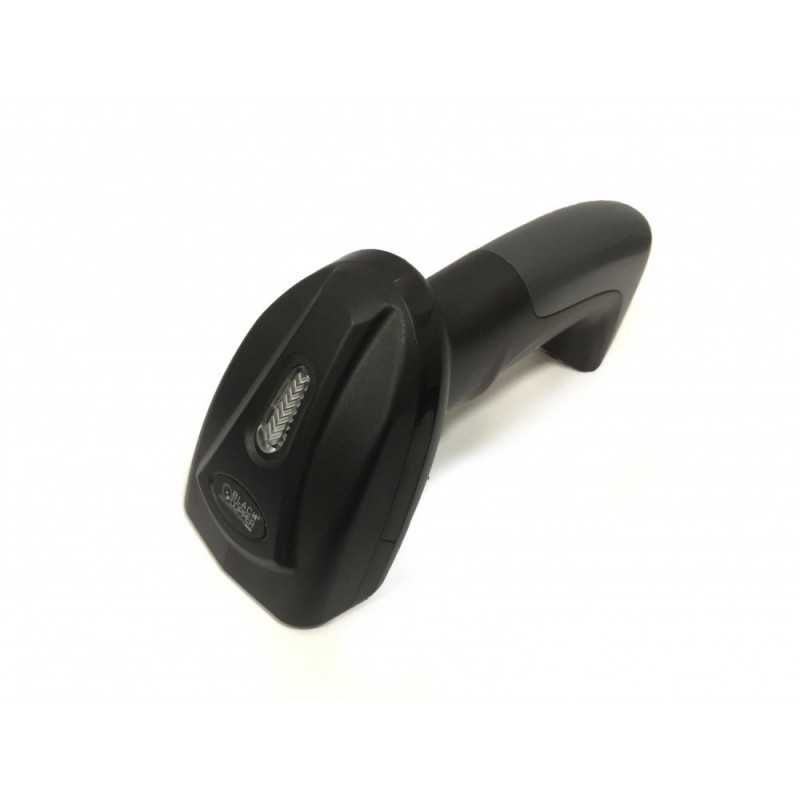

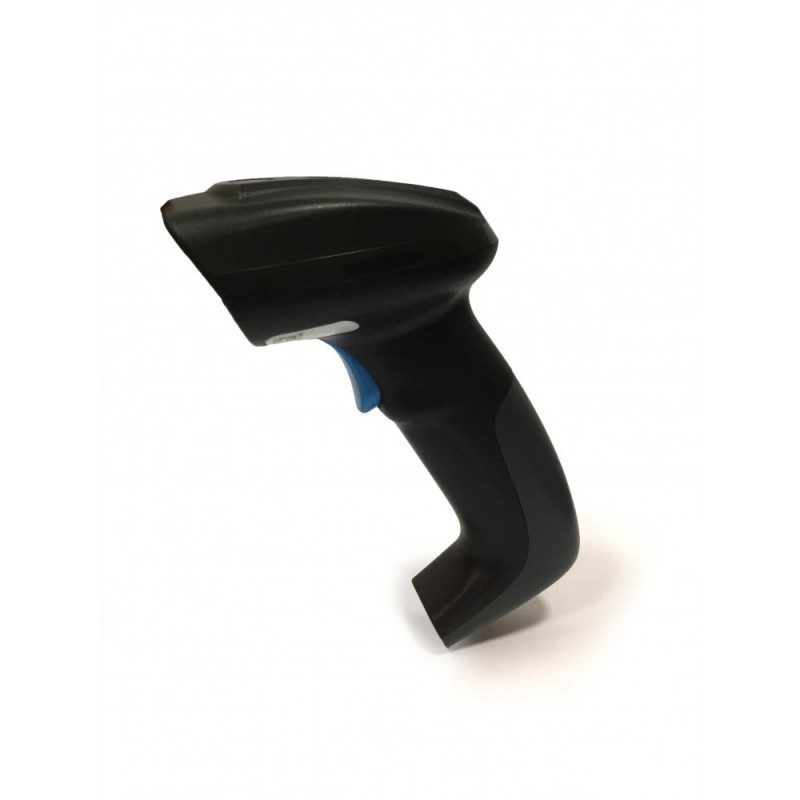

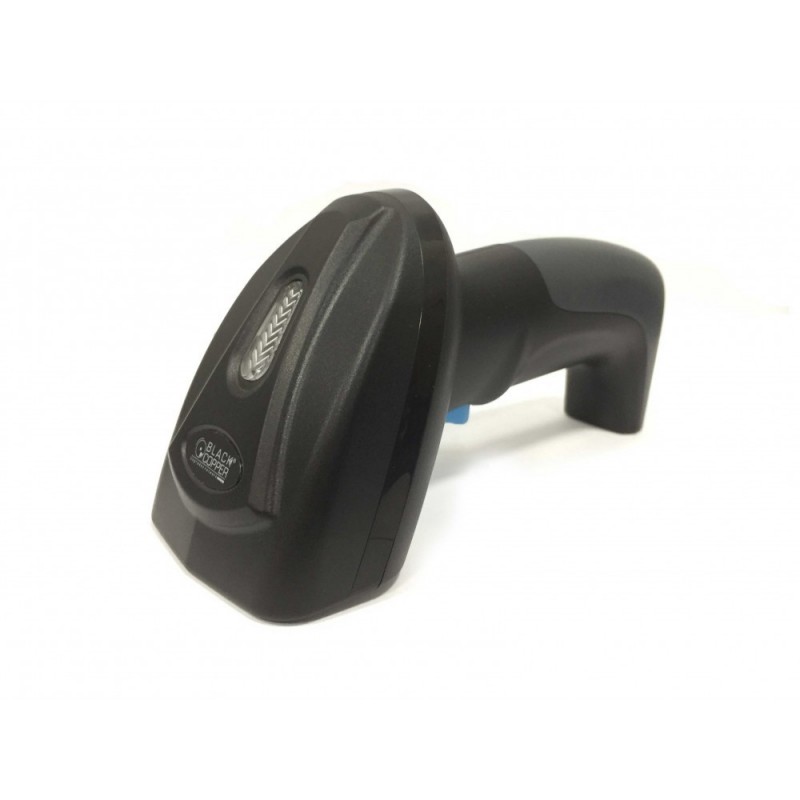

Black Copper BC-8806

OUR BEST SELLING HANDHELD SCANNER

The BC-8806 Elegant is designed for continuous usage all day, which significantly reduces downtime and repair costs. It provides accurate, first-time scanning. And since it is always ready for the next scan, the BC-8806 can shorten check-out lines, improve customer service and increase productivity.

CLASS-LEADING RANGE COMBINES WITH HIGH DENSITY BARCODE SUPPORT

Workers can capture everyday 13 mil UPC barcodes on items over 25 in (63.5 cm) away, and the high density barcodes common on small retail items – all in one device.

DURABLE CONSTRUCTION

The BC-8806 Elegant barcode scanner delivers reliable all-day, every day operation.

Specifications

PHYSICAL CHARACTERISTICS

Dimensions
90mm x 65mm x 175mm(L*W*H)
Weight
143.6g


ENVIRONMENTAL

Temp
-20°to 65°C / -4°to 149°F(operation)
-30°to 70°C /-22°to 158°F(storage)
Humidity
5%- 90% (operation) 5% - 90% (storage)
Ambient light
Fluorescent light: 3000 lx max Direct sun light: 60,000 lx max White light: 3000 lx max
Shock drop test
1.2m drop onto concrete surface
MBTF
30,000 hours except laser diode(10,000 hours) and except mirror scan unit(10,000 hours)


ELECTRICAL

Interface
USB HID KEYBOARD/USB VCP/RS-232/RS-485
Voltage requirement
DC 5V±10%
Current consumption
Max: 118mA


OPTICAL CHARACTERISTICS

Light source
650nm visible laser diode
Scan Method
Bi-directional


PERFORMANCE CHARACTERISTICS

Operating mode
Single read
Multiple read
Continuous read
Scan rate
100±20 scans/second
Decode angle
Pitch angle:±35°
Skew angle:±75°
Tilt angle:±40°
Curvature
R≥15 mm (EAN8)，R≥20 mm (EAN13)（resolution=0.26mm，PCS=0.9）
Min .PCS value
>30%UPC/EAN 13（13mil）
Min.Resolution
SR:0127mm/5mil(PCS 0.9)
HD:0.08mm/3.2mil（PCS 0.9）
Error Rate
1／500W
Language
Multiple languages


SUPPORTED BARCODE SYMBOLOGIES

EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2OF5，
STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128，CODE 11，CHINESE POST
