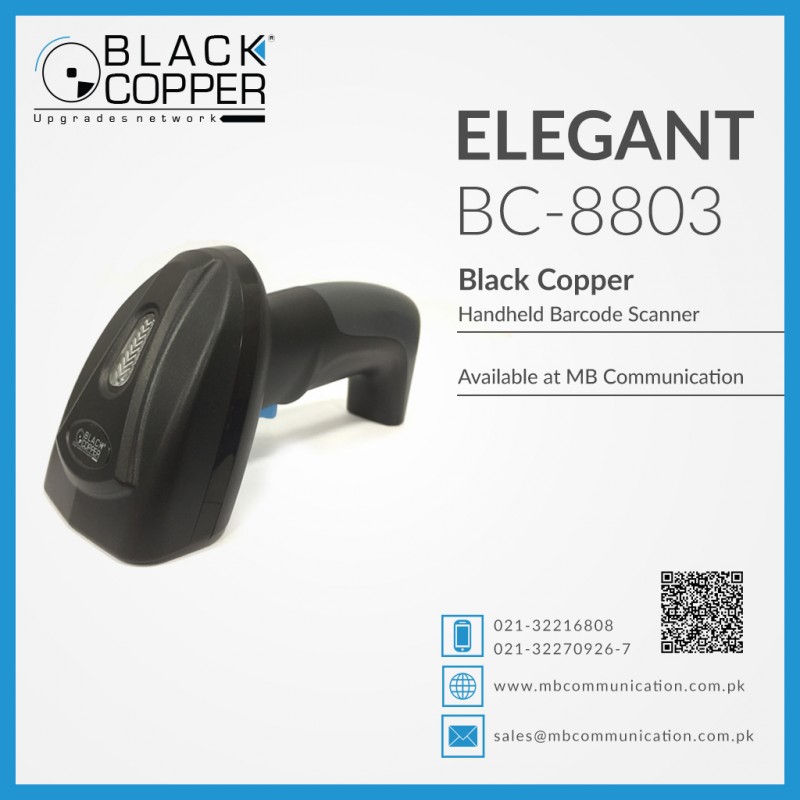

Black Copper BC8803

OUR BEST SELLING HANDHELD SCANNER

The BC8803 Elegant is designed for continuous usage all day, which significantly reduces downtime and repair costs. It provides accurate, first-time scanning. And since it is always ready for the next scan, the BC8803 can shorten check-out lines, improve customer service and increase productivity.

CLASS-LEADING RANGE COMBINES WITH HIGH DENSITY BARCODE SUPPORT

Workers can capture the everyday 13 mil UPC barcodes on items over 25 in (63.5 cm) away, and the high density barcodes common on small retail items – all in one device.

DURABLE CONSTRUCTION

The BC8803 Elegant barcode scanner delivers reliable all-day, every day operation.

Specification

Interface                                     USB HID KEYBOARD/USB VCP/RS-232

Voltage requirement                     DC 5V±10%

Current consumption                    Max:118mA

Light source                                 650nm visible laser diode

Scan rate                                     100±20 (scans/second)

                                                   Pitch angle: ±25°

Decode angle                                Skew angle: ±65°

                                                    Tilt angle: ±35°

Min resolution                                SR: 0.127mm/5mil(PCS 0.9)

Min .PCS value                               >35%UPC/ EAN 13(13mil)

Curvature                                      R=15 mm(EAN8),R=20 mm(EAN13)(resolution=0.26mm(PCS=0.9)

Compatibility                                  Win OS / Mac OS/ Linux/Android/IOS/Embedded OS

Mechanical                                         1.2m drop onto concrete surface shock

MBTF                                                    30,000 hours except laser diode (10.000 hours)and except mirror scan unit(10,000 hours)

Humidity                                              -20° to 65°C / -4° to 149°F(operation)

                                                                -30° to 70°C /-22° to158°F(storage)

                                                                Fluorescent light: 3000 lx max

Ambient Light                                    Direct sun light: 60,000 lx max

                                                                White light: 3000 lx max

Decode capability                            1D : EAN13, EAN8, UPC A, UPC E,CODABAR(NW-7), CODE 39, CODE 93, INTERLEAVED 2OF5, STANDARD 2OF5,MATRIX 2OF5, CODE 128, EAN/UCC 128,CODE 11, CHINESE POST

Laser Safety                                       JIS-C-6802 Class 2

Environmental                                  RoHS

Dimensions                                        90mm x 65mm x 175mm(L*W*H)

Weight                                                143.6g
