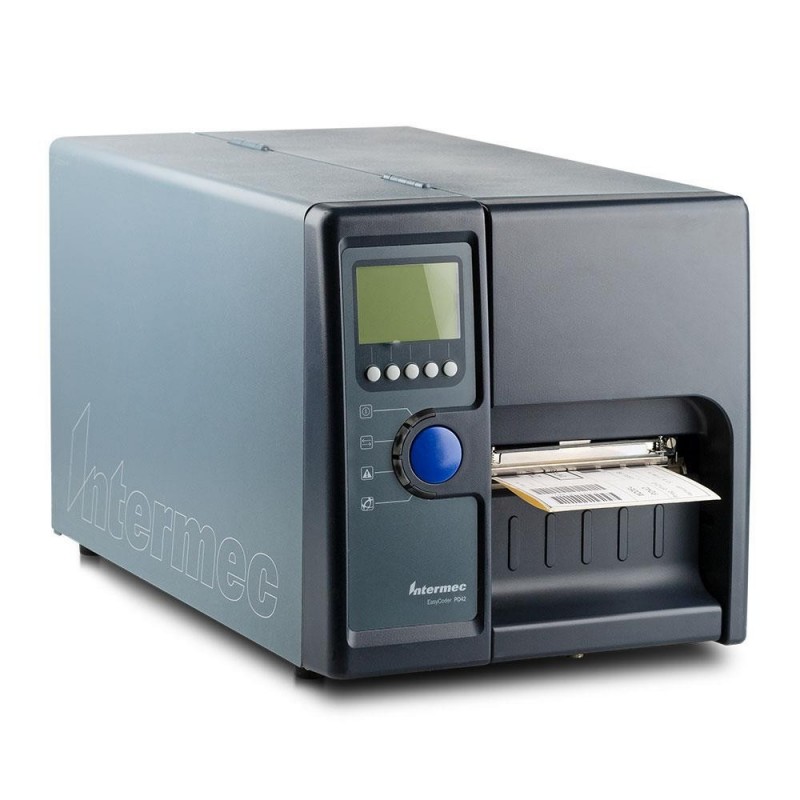

Intermec PD42 (300 Dpi)
PD42
New product
Industrial Smart Printer 300 DPI - Resolution
Smart, strong and secure, the PD42 printer (with full graphic display interface) and PD41 printer (with one-button interface) are optimized for medium-duty labeling workflows. Their multiple communication interfaces, secure wireless connectivity, CCX and Wi-Fi certification, and support for IPv6 ensure easy integration and scalability.
In Stock
WhatsApp
More info
Product Information:
Intermec PD42 (300 Dpi) Features and Benefits
Features:
Intermec PD42 (300 Dpi) Description
Overview
Smart, strong and secure, the PD42 printer (with full graphic display interface) and PD41 printer (with one-button interface) are optimized for medium-duty labeling workflows. Their multiple communication interfaces, secure wireless connectivity, CCX and Wi-Fi certification, and support for IPv6 ensure easy integration and scalability.
Specifications
MECHANICAL
Dimensions (HxWxD):
PD41:273 mm X 270 mm X 453 mm (10.8 in X 10.6 in X 17.8 in)
PD42:273 mm X 270 mm X 453 mm (10.8 in X 10.6 in X 17.8 in)
Weight:
PD41:13 kg (28.7 lbs)
PD42:13 kg (28.7 lbs)
ENVIRONMENTAL
Operating Temperature:
PD41:+5°C to +40°C (+40°F to +104°F)
PD42:+5°C to +40°C (+40°F to +104°F)
Humidity:
PD41:20-85% non-condensing free air
PD42:20-85% non-condensing free air
MEMORY
Standard:
PD41:8MB Flash memory 16MB SDRAM (1 Compact Flash slot and 1 USB Boot / Hub Slot)
PD42:8MB Flash memory 16MB SDRAM (1 Compact Flash slot and 1 USB Boot / Hub Slot)
Options:
PD41:Up to 1GB CompactFlash (type 1) memory, Multi GB USB Thumb Drive Memory
PD42:Up to 1GB CompactFlash (type 1) memory, Multi GB USB Thumb Drive Memory
POWER
Voltage Range:
PD41:100-240 VAC ±10% auto switch
PD42:100-240 VAC ±10% auto switch
Frequency Range:
PD41:45-65 Hz
PD42:45-65 Hz
PRINT SPECIFICATIONS
Max Width:
PD41:104 mm (4.09 in) at 203 dpi 105.7 mm (4.16 in) at 300 dpi
PD42:04 mm (4.09 in) at 203 dpi 105.7 mm (4.16 in) at 300 dpi
Max Length :
PD41:1520 mm (59.8 in) at 203 dpi 1028 mm (40.5 in) at 300 dpi
PD42:1520 mm (59.8 in) at 203 dpi 1028 mm (40.5 in) at 300 dpi
Max Label Width:
PD41:118.1 mm (4.65 in) With cutter: 114m (4.49 in)
PD42:118.1 mm (4.65 in) With cutter: 114m (4.49 in)
PD41:118.1 mm (4.65 in) With cutter: 114m (4.49 in)
Thickness :
PD41:2.3 to 9.8 mil
PD42:2.3 to 9.8 mil
Style :
PD41:Roll-fed, die-cut, continuous or fanfold
PD42:Roll-fed, die-cut, continuous or fanfold
Label Roll Max Diameter:
PD41:213 mm (8.38 in)
PD42:213 mm (8.38 in)
Label Roll Core:
PD41:38-76mm (1.5-3 in)
PD42:38-76mm (1.5-3 in)
Print Speed:
PD41:50-150 mm/s (2-6 ips) at 203 dpi 50-100 mm/s (2-4 ips) at 300 dpi
PD42:50-150 mm/s (2-6 ips) at 203 dpi 50-100 mm/s (2-4 ips) at 300 dpi
Resolution:
PD41:8 dots/mm (203 dpi) 11.8 dots/mm (300 dpi, option)
PD42:8 dots/mm (203 dpi) 11.8 dots/mm (300 dpi, option)
Media Type:
PD41:Direct thermal and thermal transfer label, ticket and tag printers.
PD42:Direct thermal and thermal transfer label, ticket and tag printers
SUPPORTED BARCODE SYMBOLOGIES
1-Dimensional
PD41: All major 1D symbologies are supported.
PD42: All major 1D symbologies are supported.
2-Dimensional:
PD41:All major 2D symbologies are supported.
PD42:All major 2D symbologies are supported.
INTERFACES
Standard:
PD41:• Ethernet 10/100 Mbps • RS-232, up to 115.2 kB/s • Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS • IPL: XON/XOFF, Intermec Std. Protocol • USB 2.0
PD42:• Ethernet 10/100 Mbps • RS-232, up to 115.2 kB/s • Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS • IPL: XON/XOFF, Intermec Std. Protocol • USB 2.0
Optional :
PD41:• Parallel IEEE 1284
PD42:• Parallel IEEE 1284
Wireless :
PD41:• IEEE 802.11 b/g • Wi-Fi Certified, CCX (Cisco®) version 3 Certified • WEP, WPA, WPA2, 802.11x (EAP-TTLS, LEAP, PEAP, FAST), 802.11i
PD42:• IEEE 802.11 b/g • Wi-Fi Certified, CCX (Cisco®) version 3 Certified • WEP, WPA, WPA2, 802.11x (EAP-TTLS, LEAP, PEAP, FAST), 802.11i
Supported Protocols:
Pd41:TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP. SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and Ipv6.
PD42:TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP. SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and IPv6.
