Reliability

Exclusive validation solutions eliminate expensive compliance fees by producing 100% quality barcodes, 100% of the time

Comprehensive WiFi security suite featuring the very latest protocols to block unauthorized access and ensure peace of mind

Intelligent heat management system increases printhead life and improves barcode print quality while reducing operating costs

Specification

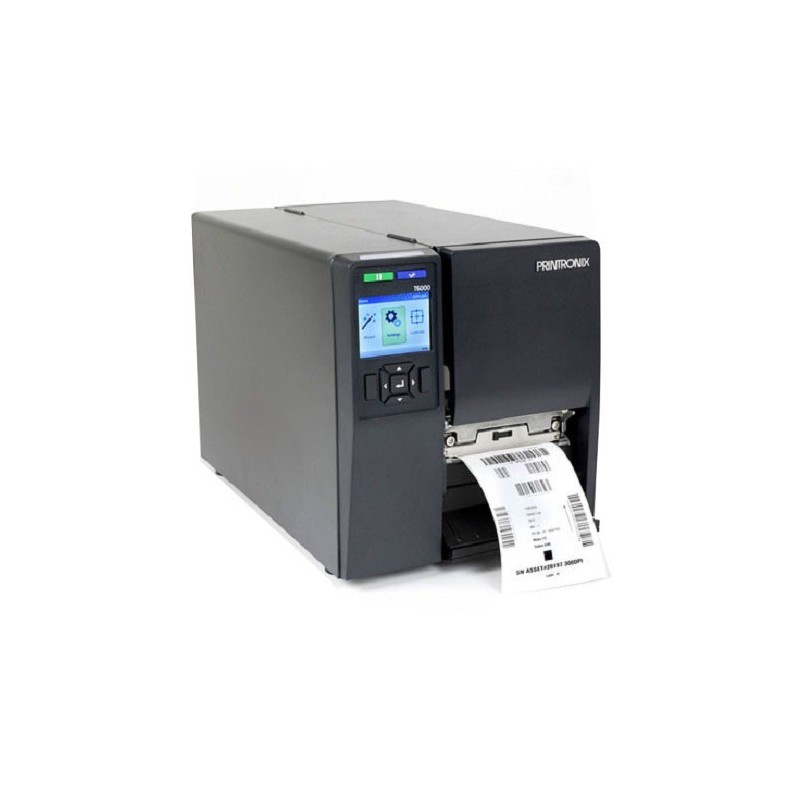

T6000

• High performance ARM Cortex-A9
• Die-cast aluminum frame with metal door
• Transfer and direct printing
• 4″ and 6″ model configurations
• Premium Asian and Andale font support
• State-of-the-art WiFi connectivity
• Available in 203 DPI and 300 DPI
• 512MB RAM/128MB Flash Memory
• 4-32 GB SD memory card capability
• ENERGY STAR Certified

PRINTING CHARACTERISTICS

• Printer Memory: 512MB RAM / 128MB Flash
• Printing Methods: Thermal transfer or Direct thermal
• Resolution: 203/300 DPI
• Max. Print Speed
• 14 IPS @ 203 DPI; 12 IPS @ 300 DPI [4″ model]
• 12 IPS @ 203 DPI; 10 IPS @ 300 DPI [6″ model]
• Max. Print Width:
• 4.1” (104mm) [4″ model]
• 6.6” (168mm) [6″ model]

MEDIA SPECIFICATIONS

• Media Types: Roll or Fan-Fold Labels, Tags, Paper, Film, Tickets
• Media Thickness: 2.5 Mil (0.0025″) to 10 Mil (0.010″)
• Roll Core Diameter: 1.5″ (37.5mm) to 3.0″ (76mm)
• Max. Media Roll Diameter: 8.0” (209mm)
• Media Sensing: Gap, Mark
• Max. Media Length: Up to 99″
• Media Width:
• 1.0” (25.4mm) to 4.5” (114.3mm) [4″ model]
• 2.0” (50.8mm) to 6.8” (172.7mm) [6″ model]
• Min. Media Length:
• 0.25”/1.0″ (Continuous/Tear-Off)
• 1.0″ (Peel-Off)

RIBBON CHARACTERISTICS

• Ribbon Type: Wax, Wax/Resin, Resin
• Coating: Coated side in, coated side out
• Max. Ribbon Length: 450 Meters
• Min. Ribbon Width:
• 1″ (25.4mm) [4″ model]
• 2″ (50.8mm) [6″ model]
• Max. Ribbon Width:
• 4.5″ (114.3mm) [4″ model]
• 6.8″ (172.7mm) [6″ model]

PHYSICAL CHARACTERISTICS

• Width:
• 10.9″ (276.9mm) [4″ model]
• 14.1″ (358.1mm) [6″ model]
• Height:
• 12.3″ (312.4mm) [4″ model]
• 12.4″ (314.9mm) [6″ model]
• Depth:
• 20.3″ (515.6mm)
• Printer Weight:
• 33.6 lbs. (14.5Kg) [4″ model]
• 39 lbs. (17.4Kg) [6″ model]
• Shipping Weight:
• 42.6 lbs. (18.6Kg) [4″ model]
• 48 lbs. (21.5Kg) [6″ model]

PRINTER LANGUAGE

• IGP Languages: PGL/VGL/ZGL/TGL/IGL/DGL/IEGL/MGLIGP
• Job Control Languages: PJL, XML, and PTX-SETUP
• Optional Languages:
• IPDS
• TN5250
• PDF Level 1.7, Postscript Level 3

COMMUNICATION & CONNECTIVITY/INTERFACE

• Standard Interface I/O: Serial RS232, USB, and Ethernet 10/100Base T
• Optional Interface I/O: Parallel, WiFi (802.11a/b/g/n), GPIO
• WiFi Security Protocol: WEP 40/128bit, WPA Personal (PSK), WPA2 Personal (PSK) and Enterprise (AES CCMP), EAP-TLS, EAP-TTLs, PEAPv0/MS-CHAPv2, PEAPv1, EAP-MD5

MEDIA HANDLING MODES

• Standard: Continuous, Tear-Off Strip, Tear-Off
• Options: Peel-Off, Cut, and Rewind

BARCODE VALIDATION

• Online Data Validator (ODV): Validates, Grade, Report, and Overstrike bar codes
• Supports 1D Barcodes (Picket Fence)
• Compatible with RFID encoding

RFID

• Available on 4″ models only
• UHF EPC Gen2/ISO18000-6C: Multi-position RF antenna, Advanced Printer Encoder Firmware encodes and validates Gen2 compliant tags
• On-Pitch label to 0.625 in (depending on inlay)
• PGL, ZPL, STGL, MGL language support
• Counters track good/bad label encoding

OPERATING ENVIRONMENT

• Operating Temperature: 40 to 104°F (5 to 40°C)
• Operating Humidity: 20–85% Non-Condensing
• Storage Temperature: 23 to 140°F (-5 to 60°C)
• Storage Humidity: 5–85% Non-Condensing

POWER REQUIREMENT

• Line Input: Auto Range 100–264 VAC (48–62 Hz)

REGULATORY COMPLIANCES

• Emissions: FCC, CE, CCC
• Safety: cTUVus, CE, EAC, SABS, RCM, CCC, KCC, S-MARK, NOM
• Environmental: RoHS, WEEE, Energy Star
• Radios (WiFi/RFID): FCC, CE, IC, and others based on market need

BAR CODE SYMBOLOGIES

• 1D Barcodes: BC-412, Code 11, Code 39, Code 35, Code 93, Codabar, Code128 Subsets A/B/C, Industrial 2 of 5, Interleave 2 of 5, German I-2/5, EAN-8, EAN-13, UCC/EAN-128, UPC-A, UPC-E, UPCSHIP, UPS 11, MSI, Matrix 2 of 5, PLESSEY, POSTNET, 4-state PostBar, Australian 4-state, FIM, ITF14, TELEPEN, PLANET, USPS Intelligent Mail, LOGMARS
• 2D Barcodes: PDF-417, MicroPDF-417, Maxicode, DataMatrix, QR Codes, Aztec, GS1 Databar (RSS-14)

FONT, GRAPHIC SUPPORT

• Graphic Formats: PCX, TIFF, BMP, PNG
• Font Technologies: Intellifont, TrueType, Unicode
• Standard Fonts: OCRA, OCRB, Courier, Letter Gothic, CG Times, CG Triumvirate/Bold/Condensed
• Asian Fonts (Optional SD card): Simplified Chinese, Japanese, and Korean
• Andale Fonts (Optional SD card): Simplified Chinese, Traditional Chinese, Korean, Japanese
• PDF/PostScript Level 3: 35 Fonts

REMOTE MANAGEMENT SOFTWARE

• PrintNet Enterprise Auto ID: Enterprise Grade Remote Management Solution

OPTIONS AND ACCESSORIES

• WiFi 802.11 a/b/g/n (US/EU/CAN)
• Parallel Port
• GPIO
• TN5250
• PDF/PostScript
• IPDS
• Online Data Validator (ODV)
• Rewind 4″/6″
• Heavy Duty Cutter 4″/6″
• Peel & Present 4″/6″
• Premium Asian Font Cards
• Andale Font Cards
• QCMC (SD Quick Change Memory Card)
• UHF RFID (US 902-928MHz, EU 866-868MHz)
