Product Overview

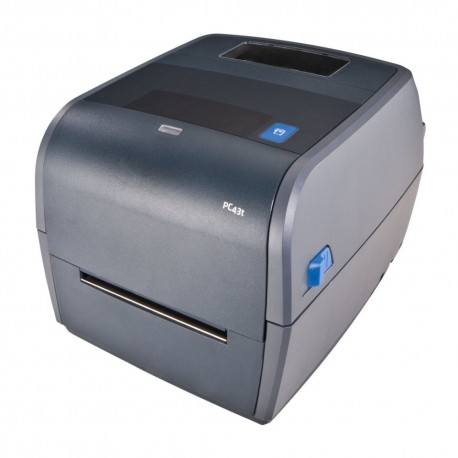

Available in 4" thermal transfer (PC43t), the Intermec PC43d / PC43t is designed to set a new standard in user friendliness and flexibility. PC43d / PC43t features a multi-language LCD or Icon-graphics user interface for maximum ease of use. User-installable connectivity options and accessories ensure that PC43d / PC43t will fit your business needs both today and tomorrow. Its low cost and fast operation make the PC43d / PC43t the smart choice for light-duty labeling applications where users need a reliable, easy-to-use printing solution.

• 10-language LCD or Icon-graphics user interface maximizes uptime
• One-handed media loading for trouble-free use
• Half-inch or one-inch ribbon core maximizes time between roll changes (PC43t)
• Fastest throughput in its class at 8 ips for a productivity advantage
• Quick configuration with USB flash drive
• Fast, friendly and complete printer emulation—including ZSim2, our most comprehensive ZPL-II® emulation ever—makes upgrading from other printer brands easy

Product Specifications

Interfaces

Standard: USB Device Type-B connector v.2.0 high speed, USB Host Type-A connector v.2.0 high speed.
Field Installable: Ethernet 10/100 Mbps module, Dual-radio module (802.11 b/g/n and Bluetooth® V2.1), USB-to-Serial adapter (RS-232), USB-to-Parallel adapter
User Interfaces:
Choice of:
• 2.36" VGA LCD 480 x 234 resolution in 10 languages, 8 buttons and ready-to-work LED
• Graphical back-lit Icons: cover open, paper out, ribbon out (PC43t), general error, maintenance, pause, thermal printhead too hot, data status, wireless status (if installed), Bluetooth® status (if installed), ready-to-work LED, and one Print/Feed button
• User-configurable audio sounds with volume levels.
Supported Protocols:
Serial Flow Control: XON/XOFF, RTS/CTS
Wireless Protocol: WEP static (64/128bits), WPA, WPA2, WEP dynamic, EAP-PEAP, EAP-TTLS, LEAP, EAP-FAST, EAP-TLS, CCX compliant level 3.
Graphics: Supports user-defined fonts and graphic formats including BMP, GIF, PCX, and PNG.

Memory

Standard: 128 MB Flash, 128 MB RAM (DDR2)
Optional: Up to 32 GB via user USB thumbdrive

Power

Separate power supply
Input: 100–240 V AC/50–60 Hz, 1.5 A
Output: 24 V DC, 2.5 A Energy-Star Compliant

Print Specifications

Label Roll Core:
Min. 25.4 mm (1 in)
Max. 38.1 mm (1.5 in)
Label Roll Max Diameter: 127 mm (5 in)
Max Label Width:
PC43: 118 mm (4.7 in)
Max Length:
203 dpi – 1727 mm (68 in)
300 dpi – 900 mm (35 in)
Print Direction: Prints text, bar codes and graphics in all four directions
Print Speed: Selectable up to 8 ips (203.2 mm/sec) for 203 dpi; 6 ips (152.4 mm/sec) for 300dpi
Print Width:
PC43:
203 dpi – max. 104 mm (4.1 in)
300 dpi – max. 106 mm (4.2 in)
PC23d:
203 dpi – max. 56 mm (2.2 in)
300 dpi – max. 54 mm (2.1 in)
Resolution: 8 dots/mm (203 dpi) or 12 dots/mm (300 dpi)

Supported Bar Code Symbologies

1-Dimensional: All major 1-dimensional bar code symbologies are available
2-Dimensional: Aztec, Code 16K, Code 49, Data Matrix, Dot Code, EAN-8, EAN-13, EAN.UCC 128, Grid Matrix, HIBC 39, HIBC 128, MaxiCode, MSI (modified Plessey), PDF417, Micro PDF417, Planet, Plessey, Postnet, QR-Code, RSS-14 (variations)

Accessories

User Accessories: Dispenser with LTS, Cutter Unit with LTS (PC43d & PC43t) user settable partial or full cut, Front Label Tray (PC43d & PC43t), 300 dpi, Linerless (PC43d & PC43t), Printer Case Lock
