Ubiquiti AM-2G15-120
AM2G15120
New product

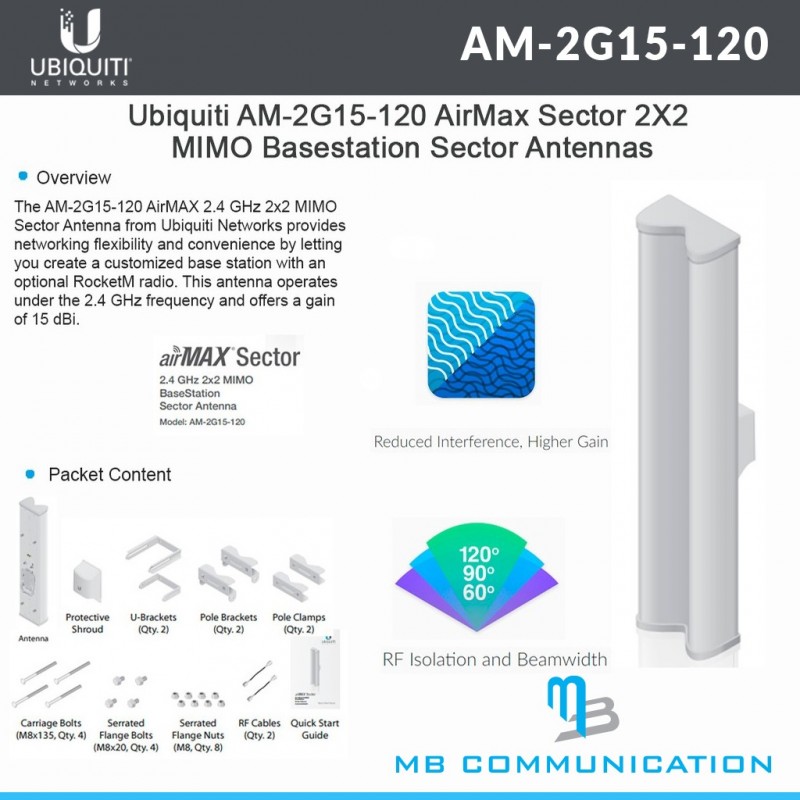

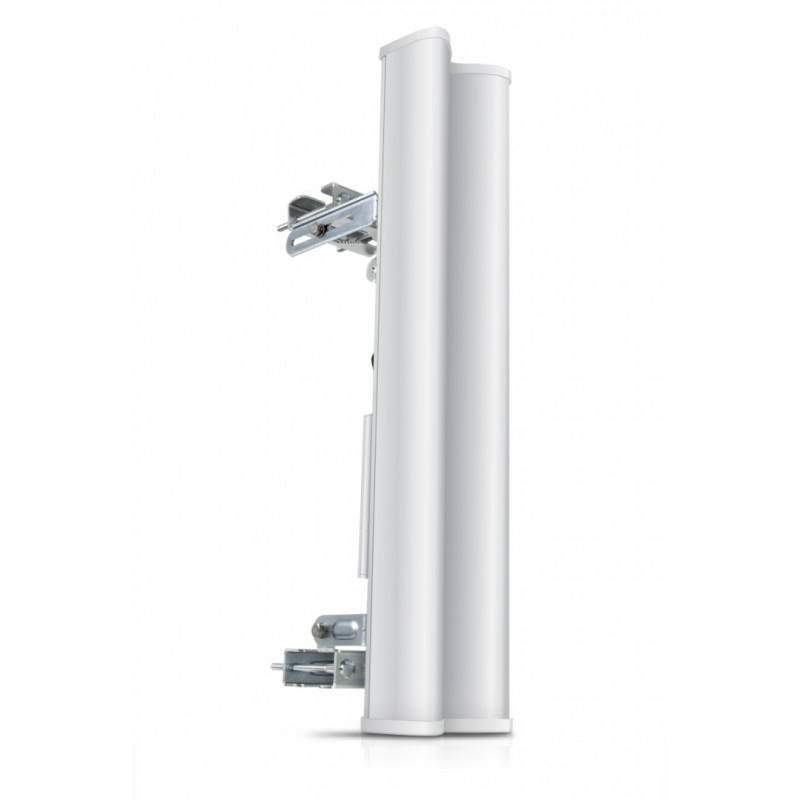

airMAX® 2x2 BaseStation Sector Antenna
Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.
This product is no longer in stock
WhatsApp
More info
Product Information:
Ubiquiti AM-2G15-120 Features and Benefits
Features:
Ubiquiti AM-2G15-120 Description
|
AM-2G15-120. |
|
2.4 GHz. |
|
15 dBi. |
|
169 N @ 200 km/h (38 lbf @ 125 mph). |
|
200 km/h (125 mph). |
|
28 dB min. |
|
802.3at PoE+. |
Features:
Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.
Specification:
| Mode | AM-2G15-120. |
| Dimensions* | 700 x 145 x 93 mm (27.56 x 5.71 x 3.66"). |
| Weight* | 4.0 kg (8.82 lbs). |
| Frequency Range | 2.3–2.7 GHz. |
| Gain | 15.0–16.0 dBi. |
| HPOL Beamwidth | 123° (6 dB). |
| VPOL Beamwidth | 118° (6 dB). |
| Electrical Beamwidth | 200 km/h (125 mph). |
| Electrical Downtilt | 4° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 169 N @ 200 km/h (38 lbf @ 125 mph). |
| Wind Loading | 169 N @ 200 km/h (38 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 28 dB min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
