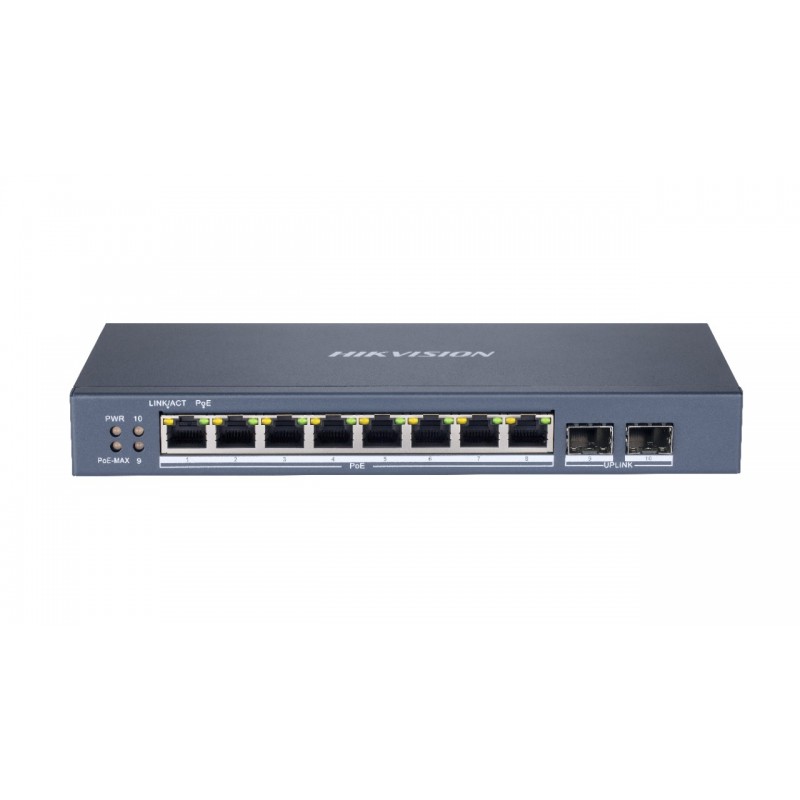

8 Port Gigabit Web POE Switch

• 8 × gigabit PoE ports, and 2 × gigabit fiber optical ports
• IEEE 802.3at/af standard for PoE ports
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
• 6 KV surge protection for PoE ports.
• AF/AT camera can reach up to 300 m in extend mode
• PoE watchdog to auto detect and restart the cameras that do not respond
• PoE output power management
• Gigabit network access design
• Wire-speed forwarding
• Store-and-forward switching
• Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on
• Port management
• Web management
• Solid high-strength metal shell
• Reliable fan-free design

Specification

• General
• Shell: Metal material, fan-free design
• Net Weight: 1.21 kg (2.67 lb)
• Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity: 5% to 95% (no condensation)
• Power Supply: 48 VDC, 2.5 A
• Gross Weight: 1.3 kg (2.87 lb)
• Dimension (L × H × D): 217.6 mm × 108.55 mm × 27.8 mm (8.57” × 4.27” × 1.09”)
• Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Relative Humidity: 5% to 95% (no condensation)
• Power Source: 120 W
• Max. Power Consumption: 120 W
• Power Consumption In Idle: 7 W

• Network Parameters
• Port Number: 8 × gigabit PoE ports, and 2 × gigabit fiber optical ports
• Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
• Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
• Forwarding Mode: Store-and-forward switching
• Working Mode: Standard mode (default); Extend mode
• MAC Address Table: 8 K
• Switching Capacity: 20 Gbps
• Packet Forwarding Rate: 14.88 Mpps
• Internal Cache: 4.1 Mbits

• PoE Power Supply
• PoE Standard: IEEE 802.3af, IEEE 802.3at
• PoE Power Pin: Ethernet cables 1/2/3/6 provide power supply.
• PoE Port: Ports 1 to 8
• Max. Port Power: 30 W
• PoE Power Budget: 110 W

• Software Function
• Device Maintenance: Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters, import and export configuration, time sync.
• Port Configuration: Support the configuration of port rate and slow control, and ports enabling.
• Long Range: Support up to 300 m transmission.
• PoE Watchdog: Ports 1 to 8: auto detect and restart the cameras that do not respond.
• Port Rate-Limiting: Support rate-limiting for ingress and egress ports..
• Storm Control

  Support the storm control of unknown unicast, multicast and

  broadcast.

• Port Mirroring: Support port mirroring function.
• QoS: Support WRR and SP scheduling and port priority.
• VLAN: Support 128 VLANs.
• STP: Support STP and RSTP.
• SNMP: Support SNMPv1 and SNMPv2c, the node information for system and interfaces acquisition.
• PoE: Support IEEE 802.3at/af power supply.
