Product Information:

Tenda TEF1105P-4-63W Features and Benefits

Features:

Tenda TEF1105P-4-63W Description

Overview

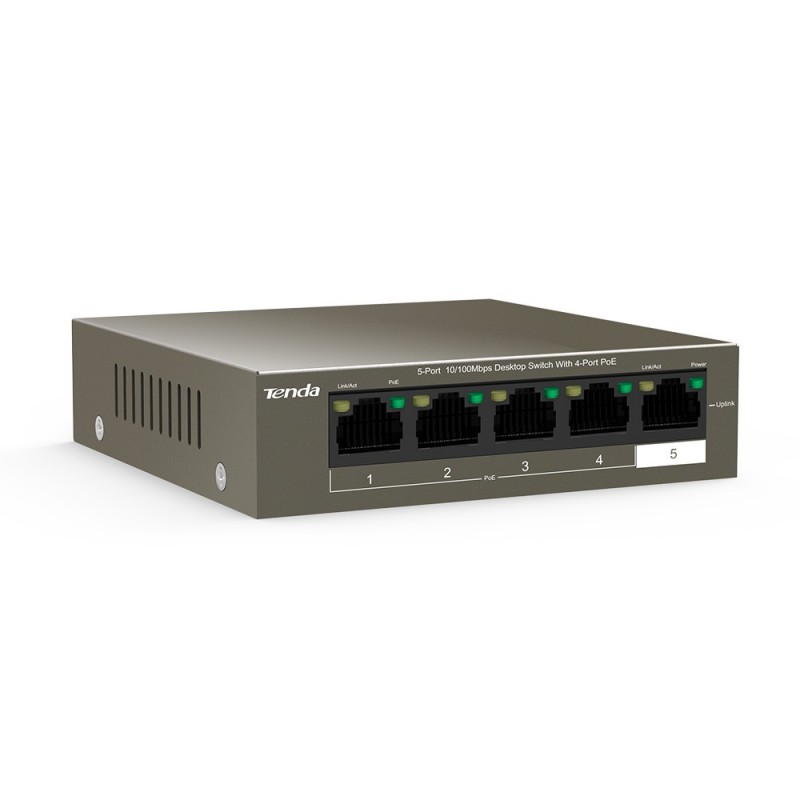

TEF1105P-4-63W is a Tenda PoE switch that offers 5 10/100 Mbps Base-TX RJ45 ports. Up to 250 meters long distance transmission, beyond hundred meters transfer limit. 6KV lightning protection PoE switch is the real monitoring private switch. Ports 1-4 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output a single port and 58W the whole device.

Hardware

Network standards

IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at

LED Indicator

5* Link/Ack LED indicators
1 * Power LED indicator

Interfaces

4*10/100 Base-TX Ethernet Ports(Data/Power)
1*10/100 Base-TX Ethernet Port(Data)

Transmission media

Recommended: CAT5/5e UTP or better

N/A

Dimension

100.0mmx100.0mmx26.0mm

Level of protection

Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

1Gbps

Packet forwarding rate

0.74Mpps

Buffer

448K

MAC address table

1K

Jombo frame

N/A

PoE budget

Single port: AF: 15.4W, AT: 30W
Whole device: 58W

Power consumption

/

Input voltage

100－240V AC 50/60Hz
51V /1.25A DC（Power Adapter ）

Mounting

Desktop mounting: support

Wall mounting: support

Rack mounting: non-support

Environment

Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE、RoHS

Software

Functions

Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other .
Extend mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this function can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project.

Buy Tenda TEF1105P-4-63W 5-Port Switch 10/100MBPS, – MB Communication is a 5-Port Switch 10/100MBPS Tenda TEF1105P-4-63W reseller in Pakistan offers Tenda products 5-Port Switch 10/100MBPS.

Tenda TEF1105P-4-63W price in Pakistan is Rs 6,360
