Overview

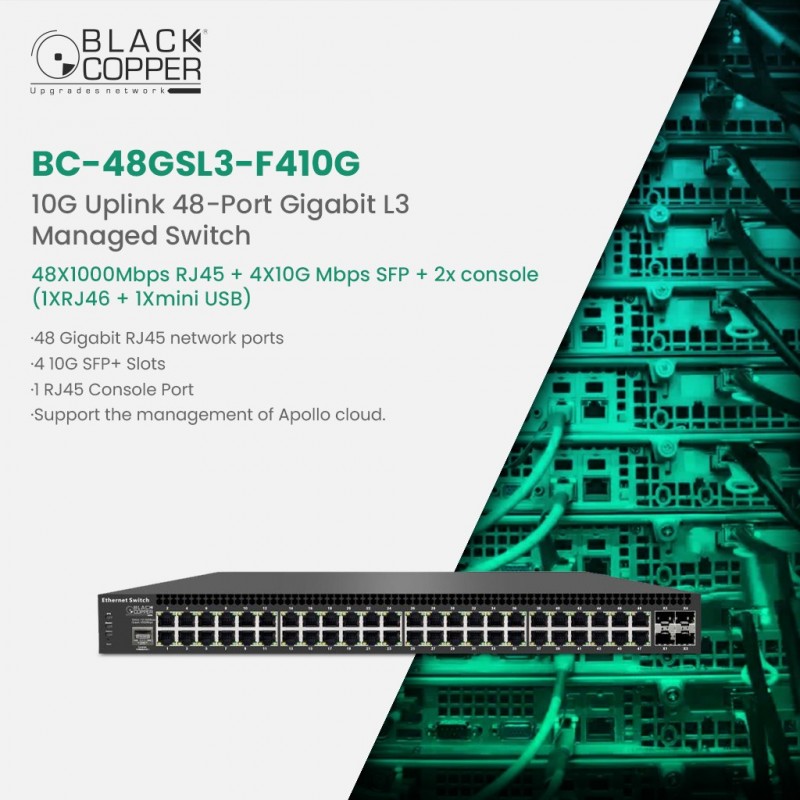

The BC-48GSL3-F410G layer 3 management switch is designed for small and medium-sized enterprises (SMEs), large enterprises and Internet service providers (ISPs). They have high performance, flexibility, fault tolerance and advanced software functions to achieve the maximum return on investment. The BC-48GSL3-F410G switch has 48 gigabit Ethernet RJ45 ports and 4 10 GbE SFP+ports, advanced security features and advanced quality of service (QoS). It can be used as a core, distributed or access layer switch, with high port density, switch stacking and manageability. It is an ideal choice for various commercial network applications.

Features

Port 6KV lightning protection

• The whole port supports 6KV lightning protection.
• Dual power redundancy design supports seamless switching in case of failure without manual intervention.

Advanced hardware architecture design, powerful processing capability

• On the 1U box switch, it realizes the high-end port density of 48 Gigabit + 4 10 Gigabit and is equipped with Realtek's high-performance 800MHz MIPS-34Kc CPU, which can meet the application requirements of various complex scenarios and substantially increase the network data processing rate.

Powerful business processing capabilities

Support 802.1Q VLAN, MAC VLAN, IP VLAN, users can flexibly divide VLAN as needed.
• Support QoS, 8 port queues, support port priority, 802.1P priority, DSCP priority, support SP, WRR, SP+WRR, WFQ priority scheduling algorithm.
• Support ACL, support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function, provide flexible and secure access control policy.
• Support IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping to meet the requirements of multi-terminal HD video
surveillance or video conference.
• Supports the fast leave mechanism and querier of Layer 2 multicast, supports Layer 2 IPv4 static multicast and Layer 2 IPv6 static multicast.
• Support RIP dynamic routing protocol, solve the routing problem after the small and medium-sized network is divided into subnets, and simplify the network configuration.
• Support static routing protocol, and manually configure routing entries to realize communication between different network segments.
• Support ARP configuration, so that hosts in different physical networks on the same network segment can communicate normally.

Perfect security mechanism

• Complete security authentication mechanism: It supports IEEE 802.1x, Radius, Tacacs+, etc., and can provide users with a complete security authentication mechanism.
• The perfect loop detection mechanism can ensure the stable operation of the network for a long time.
• Provide port isolation in the same VLAN, and security features such as DHCP- Snooping, IP+MAC+port binding, etc., to further ensure user data security.
• Support ARP protection, IP source protection, DoS protection.
• Support to restrict user access based on port number, IP address and MAC address.
Diverse reliability protection
• Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols to eliminate Layer 2 loops and implement link backup.
• Supports loop protection, root bridge protection, TC protection, BPDU protection, and BPDU filtering.
• Support 50ms switching of optical ports.

Flexible and convenient management and maintenance

• Support various management methods such as Console, Telnet, and SSH.
• Support WEB management (HTTP, HTTPS, SSL V3), which is simpler and more efficient, and is convenient for users to install and debug.
• Support file upload and download management in TFTP mode.
• Support SNMP V1/V2/V3 to facilitate device management through the network management platform.
• Support one-stop management and maintenance of Fengrunda Apollo cloud platform, which can realize all-round remote operation and maintenance such as automatic device discovery, network topology management, and remote configuration management of devices.
