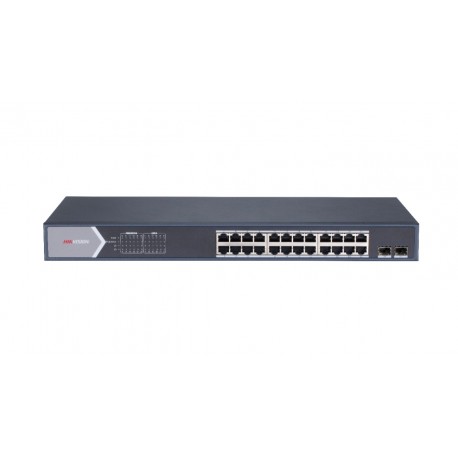

Hikvision DS-3E1526P-SI View larger

Hikvision DS-3E1526P-SI

DS3E1526PSI

New product

24 Port Gigabit Smart POE Switch

  • 24 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
  • IEEE 802.3at/af standard for PoE ports.
  • Network topology management, alarm push, network health monitor.
  • 6 KV surge protection for PoE ports.
  • AF/AT camera can reach up to 300 m in extend mode.
  • PoE watchdog to auto detect and restart the cameras that do not respond.

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 91,720

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-3E1526P-SI Features and Benefits

Features:

Hikvision DS-3E1526P-SI Description

24 Port Gigabit Smart POE Switch

  • 24 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
  • IEEE 802.3at/af standard for PoE ports.
  • Network topology management, alarm push, network health monitor.
  • 6 KV surge protection for PoE ports.
  • AF/AT camera can reach up to 300 m in extend mode.
  • PoE watchdog to auto detect and restart the cameras that do not respond.
  • Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.

Specifications

PoE Power Supply
PoE Standard IEEE 802.3af, IEEE 802.3at
PoE Power Pin

End-span: 1/2 (-), 3/6 (+)

Mid-span: 4/5 (+), 7/8 (-)

8-pin power: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-)
PoE Port PoE: Ports 1 to 24
Max. Port Power Port 1 to 24: 30 W
PoE Power Budget 370 W
Network Parameters
Port Number 24 × gigabit PoE port, and 2 × gigabit fiber optical port
Port Type RJ45 port, full duplex, MDI / MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding Mode Store-and-forward switching
Working Mode

Standard mode (default)

Extend mode
MAC Address Table 8 K
Switching Capacity 52 Gbps
Packet Forwarding Rate 36,688 Mpps
Internal Cache 4.1 Mbits
Software Function
Device Maintenance Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
Port Configuration Port rate configuration, flow control, and ports enabling
Long Range Up to 300 m transmission
PoE Configuration

PoE watchdog: Ports 1 to 24 auto detect and restart the cameras that do not respond.

PoE enabling: Support
Port Rate-Limiting Rate-limiting for ingress and egress ports
Storm Control Storm control of unknown unicast, multicast and broadcast
Port Mirroring Support
Link Aggregation Static link aggregation supported
Port Isolation Ports in isolation group cannot communicate with each other.
QoS WRR and SP scheduling and port priority
VLAN 4094 VLANs
STP STP and RSTP protocols
SNMP SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
LLDP LLDP protocol supported for port configuration, global configuration and neighbor discovery
General
Shell Metal material
Net Weight 2.975 kg (6.56 lbs)
Gross Weight 3.535 kg (7.79 lbs)
Dimension (W × H × D) 440 mm × 221 mm × 44 mm (17.32 "× 8.7" × 1.73 ")
Operating Temperature -10 ° C to 55 ° C (14 ° F to 131 ° F)
Storage Temperature -40 ° C to 85 ° C (-40 ° F to 185 ° F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 100 to 240 VAC, 50/60 Hz, Max.6.5 A
Max. Power Consumption 400 W
Power Consumption in Idle 30 W
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS / NZS CISPR 32: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1: 2005, AMD1: 2009, AMD2: 2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013, EN 62368-1: 2014 + A11: 2017)
Chemistry CE-RoHS (2011/65 / EU); WEEE (2012/19 / EU); Reach (Regulation (EC) No. 1907/2006)
