  6. Hikvision DS-3E0326P-E-M(B)
Hikvision DS-3E0326p-E/M View larger

Hikvision DS-3E0326P-E-M(B)

DS3E0326PEMB

New product

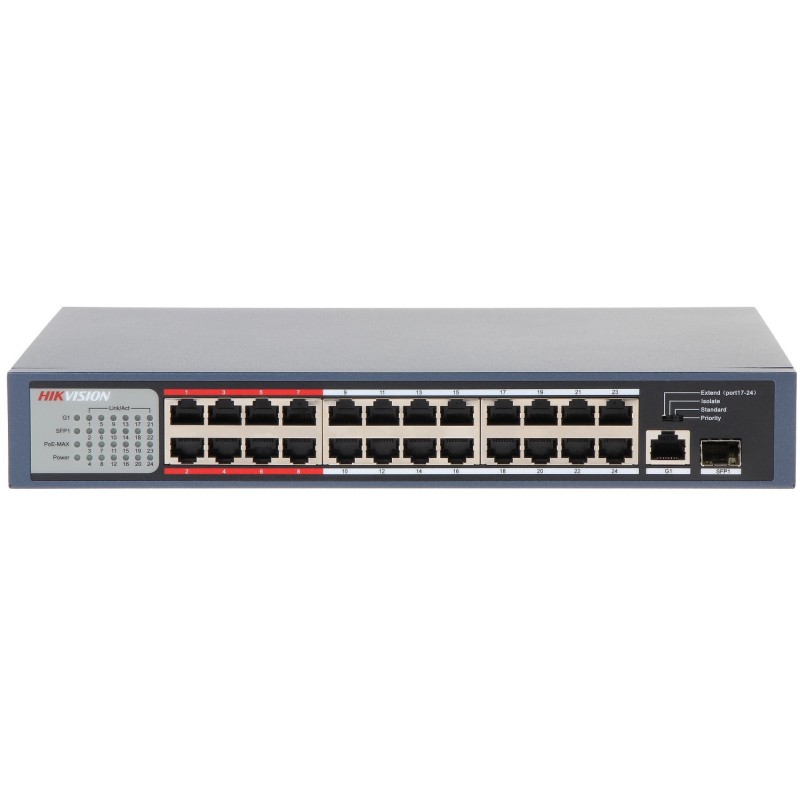

24-Port 100 Mbps Long-Range Unmanaged PoE Switch

DS-3E0326P-E(B) is a layer 2 100 Mbps PoE switch. Based on wire-speed forwarding, the switch supports Ethernet PoE power supply and extend mode.

More details

In Stock

Whatsapp MB WhatsApp

Whatsapp MB WhatsApp

Rs 42,640

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Hikvision DS-3E0326P-E-M(B) Features and Benefits

Features:

Hikvision DS-3E0326P-E-M(B) Description

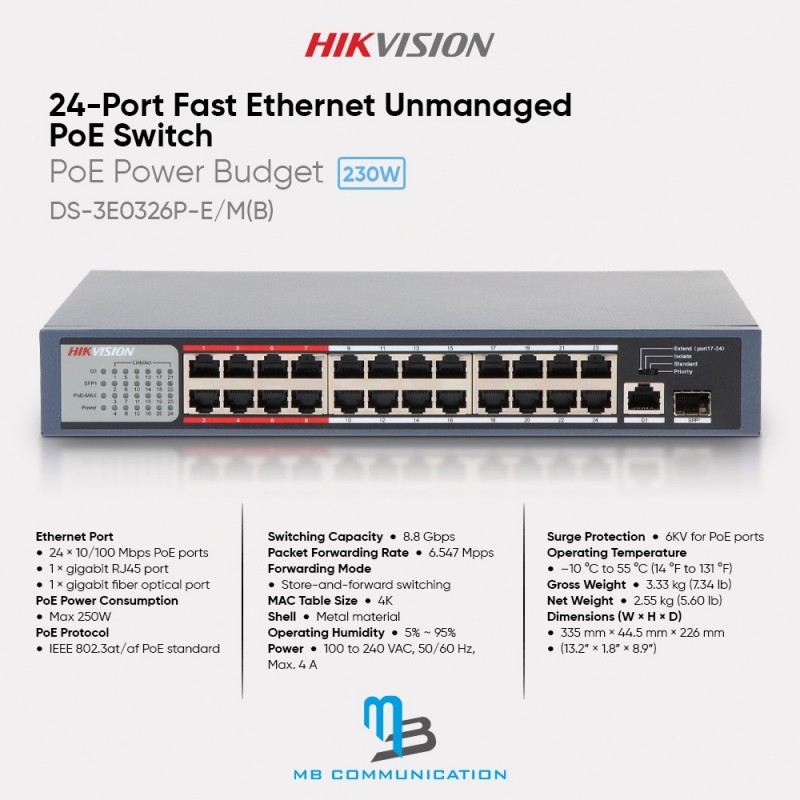

24-Port 100 Mbps Long-Range Unmanaged PoE Switch

DS-3E0326P-E(B) is a layer 2 100 Mbps PoE switch. Based on wire-speed forwarding, the switch supports Ethernet PoE power supply and extend mode. The power supply distance reaches as long as 250 m. It also supports prior and stable transmission of the important surveillance area video when connected to the high priority ports.

Feature and Function

  • 24 × 100 Mbps PoE ports, and 2 × 1000 Mbps combos.
  • IEEE 802.3at/af standard.
  • IEEE 802.3, IEEE 802.3u and IEEE 802.3x standard.
  • High priority ports.
  • 8-core power supply.
  • Upstream port link aggregation.
  • Up to 250 m transmission distance.
  • 6 KV surge protection for PoE ports.
  • PoE power management.
  • 100 Mbps network access.
  • Wire-speed forwarding and non-blocking design.
  • Store-and-forward switching.
  • Solid high-strength metal shell.

SPECS

GENERAL

  • Subtype
    Fast Ethernet
  • Ports
    24 x 10/100 (PoE+) + 1 x 10/100/1000 (uplink) + 1 x Gigabit SFP (uplink)
  • Power Over Ethernet (PoE)
    PoE+
  • PoE Budget
    225 Watt
  • MAC Address Table Size
    4K entries
  • Power Over Ethernet (PoE)
    PoE+
  • Status Indicators
    Port status, power, link/activity
  • PoE Budget
    225 W
  • Manufacturer
    Hikvision

POWER DEVICE

  • Nominal Voltage
    AC 120/230 V
  • Frequency Required
    50/60 Hz
  • Type
    internal power supply

NETWORKING

  • MAC Address Table Size
    4K entries
  • Subcategory
    network hubs and switches
  • Subtype
    Fast Ethernet
  • Form Factor
    desktop, rack-mountable
  • Type
    Switch
  • Features
    MAC address aging, MAC address learning, extend mode, full duplex mode, isolate mode, metal housing, priority mode, standard mode, store and forward
  • Compliant Standards
    IEEE 802.1Q, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Ports Qty
    24
  • Manageable
    No
  • PoE Budget
    225 Watt
  • Power Over Ethernet (PoE)
    PoE+

MISCELLANEOUS

  • Height (Rack Units)
    1 m
  • Color Category
    black

INTERFACE PROVIDED

  • Qty
    1, 24
  • PoE Power
    30 Watt
  • Comments
    PoE+, uplink

ENVIRONMENTAL PARAMETERS

  • Humidity Range Storage
    5 - 90% (non-condensing)
  • Min Storage Temperature
    -40 °F
  • Max Storage Temperature
    158 °F
  • Min Operating Temperature
    32 °F
  • Max Operating Temperature
    104 °F
  • Humidity Range Operating
    10 - 90% (non-condensing)

HEADER

  • Brand
    Hikvision
  • Product Line
    Hikvision
  • Model
    DS-3E0326P-E/M
  • Packaged Quantity
    1

PORTS

  • Type
    10/100 (PoE+)
  • Qty
    24

PORTS (2ND)

  • Type
    10/100/1000 (uplink)
  • Qty
    1

PERFORMANCE

  • Type
    switching capacity
  • Value
    8.8 Gbps

PORTS (3RD)

  • Type
    Gigabit SFP (uplink)
  • Qty
    1

GENERAL

  • Manufacturer
    Hikvision
