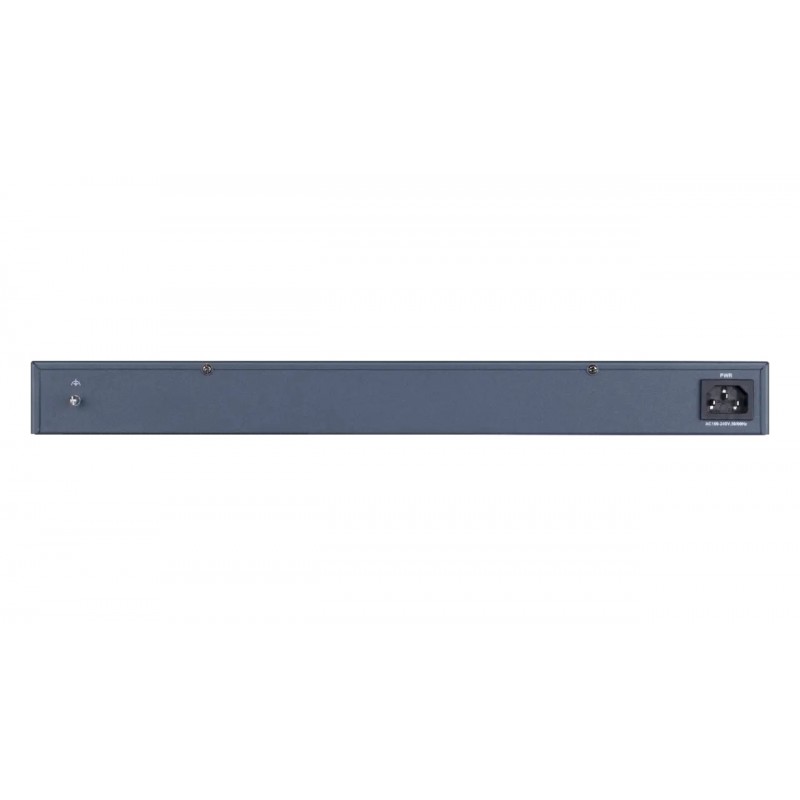

Hikvision DS-3E0526P-E/M
DS3E0526PEM
New product
24 Port Gigabit Unmanaged POE Switch:
DS-3E0526P-E switches are Layer 2 Gigabit PoE unmanaged switches, providing 24 gigabit PoE ports, one 10/100/1000 Mbps RJ45 port, and one 10/100/1000 Mbps SFP fiber optical port. The switches provide advanced PoE technology and connect other devices with high performance.
In Stock
Warning: Last items in stock!
WhatsApp
Rating:
Be the first to write a review!
More info
Product Information:
Hikvision DS-3E0526P-E/M Features and Benefits
Features:
Hikvision DS-3E0526P-E/M Description
Specification:
- 24 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports.
- IEEE 802.3at/af standard.
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
- 6 KV surge protection for PoE ports
- PoE power management
- Gigabit network access
- Wire-speed forwarding
- Store-and-forward switching
- Solid high-strength metal shell
Networking Parameters:
- Ports 24 × Gigabit PoE ports, and 2 × Gigabit fiber optical ports
- Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
- Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
- Forwarding Mode Store-and-forward switching
- MAC Address Table 8 K
- Switching Capacity 52 Gbps
- Packet Forwarding Rate 38.688 Mpps
- Internal Cache 4.1 Mbits
General:
- Dimensions (W × H × D) 440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
- Shell Metal material, fan-free design
- Gross Weight 4.12 kg (9.08 lb)
- Net Weight 2.92 kg (6.44 lb)
- Operating Temperature –10 °C to 55 °C (14 °F to 131 °F)
- Operating Humidity 5% to 95% (no condensation)
- Storage Temperature –40 °C to 85 °C (–40 °F to 185 °F)
- Storage Humidity 5% to 95% (no condensation)
- Power Supply 100 to 240 VAC, 50/60 Hz, 4 A (Max)
- Power Consumption In Idle 25 W
- Max. Power Consumption 250 W
PoE Power Supply:
- PoE Standard IEEE 802.3af, IEEE 802.3at
- PoE Power Pin End-span: 1/2(-), 3/6(+)
- PoE Port Ports 1 to 24
- Max. Port Power 30 W
- PoE Power Budget 225 W
