2. Networking Products
  3. Networking Switch
  4. Gigabit Ethernet Switch
  5. 16-Port Switch 1000MBPS
  6. Black Copper BC-16PGM
Black Copper BC-16PGM View larger
Previous Next

Black Copper BC-16PGM

BC16PGM

New product

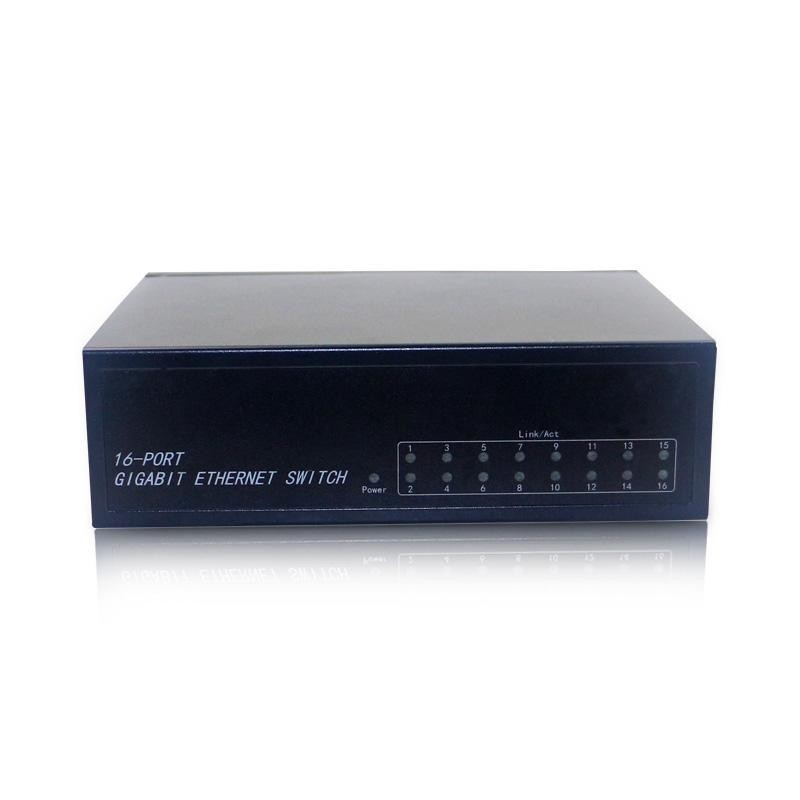

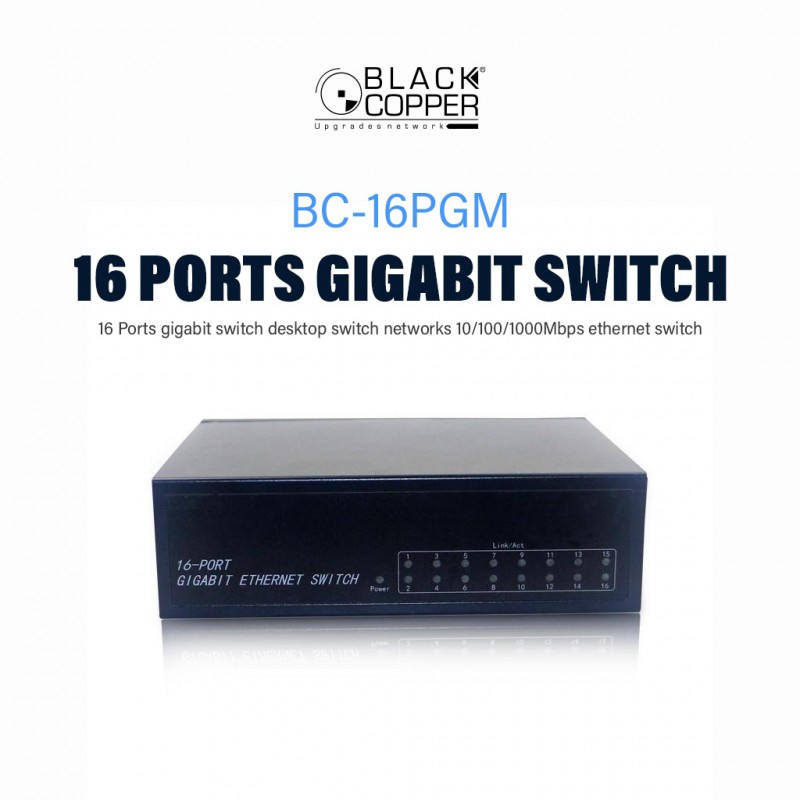

Black Copper BC-16PGM 16 Ports gigabit switch

16 Ports gigabit switch desktop switch networks 10/100/1000Mbps ethernet switch

More details

This product is no longer in stock

Whatsapp MB WhatsApp

Rs 6,470

Call | Whatsapp

Karachi: +92-300-0778713 , +92-300-8265122 , +92-213-2270926 , +92-213-2270927

For Information & Quotation Email: sales@mbcommunication.com.pk

More info

Product Information:

Black Copper BC-16PGM Features and Benefits

Features:

Black Copper BC-16PGM Description

Features:

1. Comply with IEEE802.3, IEEE802.3u and 802.3ab standard
2.16 10/100/1000Mbps auto-negotiable RJ45 ports, support Auto-MDI/MDIX
3.Support 8k MAC Address,EEPROM configuration,stackable and QoS
4.Supprot IPv4 IGMP v1/v2/v3 and IPv6 ML Dv1/v2 detection
5.All ports support IEEE 802.3x half-duplex flow control and full-duplex back pressure mode
6.Non-blocking exchange frame ,full wire-speed transmission and max throughput filter the data packet.
7.Support MAC address learning , and automatically adjust transmission mode and transmission rate
8.LED indicators ,link and activity ,and provide the simple indication of operating status and troubleshooting
9.19 inches standard rack type steel shell design

Standards

 IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE802.3ab 1000BASE-T
IEEE 802.3x Flow Control

Port Number

 16 x 10/100/1000Mbps Auto-MDIX RJ-45 Ports

Data Transfer Rate

 10/100/1000Mbps(Half-duplex) | 20/200/2000Mbps(Full-duplex)

Forwarding Rate

 10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port

Protocol

 CSMA/CD

Topology



 Star

Uplink

 Each port can act as a Uplink port

Transfer Mode

 Store and forward

Backplane Bandwidth

 32GB

Built-in Buffer

 2M bits

MAC Address Table

 8K

LED Indicator

 1 power light 15 data lights

Temperature

 Operating: -10°F to 70°F | Storage: -10°F to 90°F

Humidity

 Operating: 5% to 90% | Storage: 5% to 90%

Power Supply

 Built-in power supply 100-240V AC/50-60Hz 220V/0.6A

Enclosure Material

 Metal

Certifications

 CE RoHS

Operating System

 Supports Windows/MAC OS/Netware/Linux operating systems

Customized Service

 OEM/ODM

Weight

 Net Weight:0.6kg
