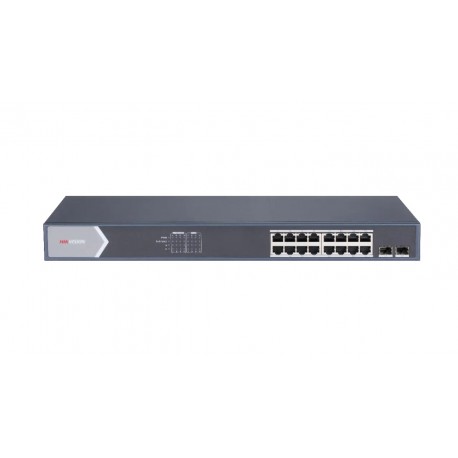

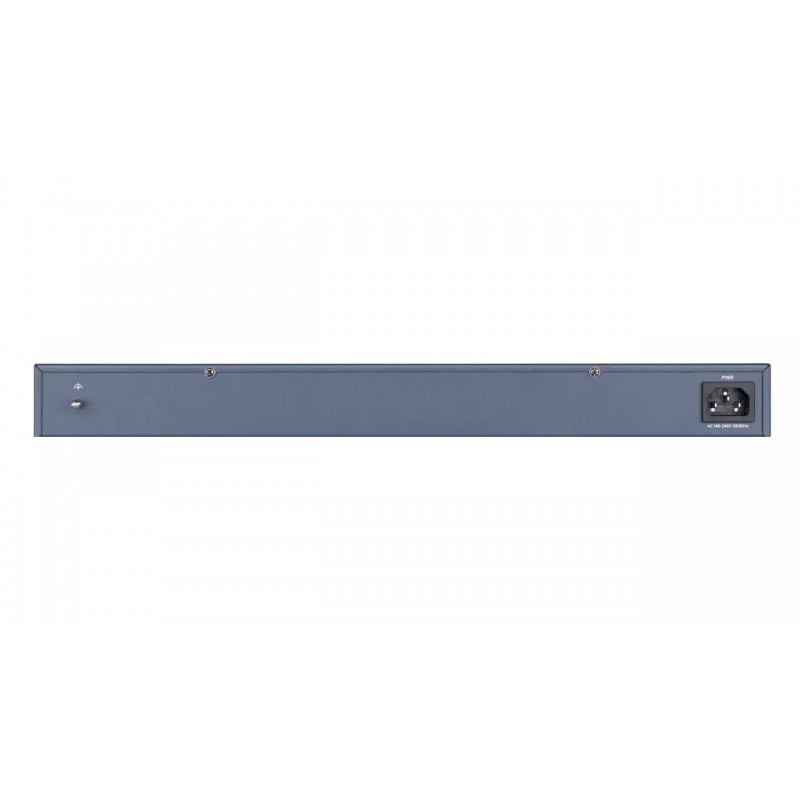

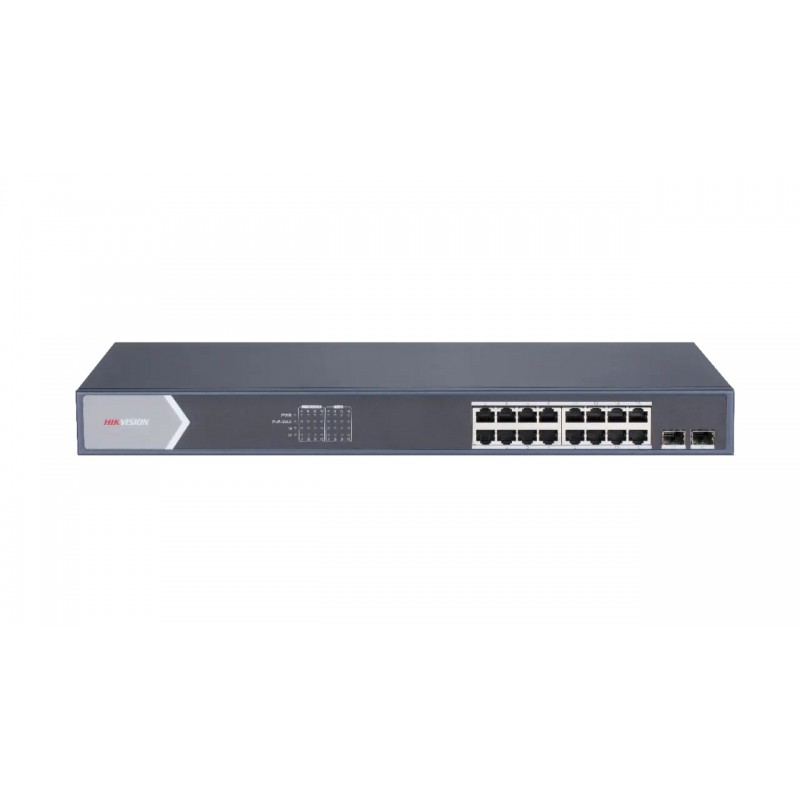

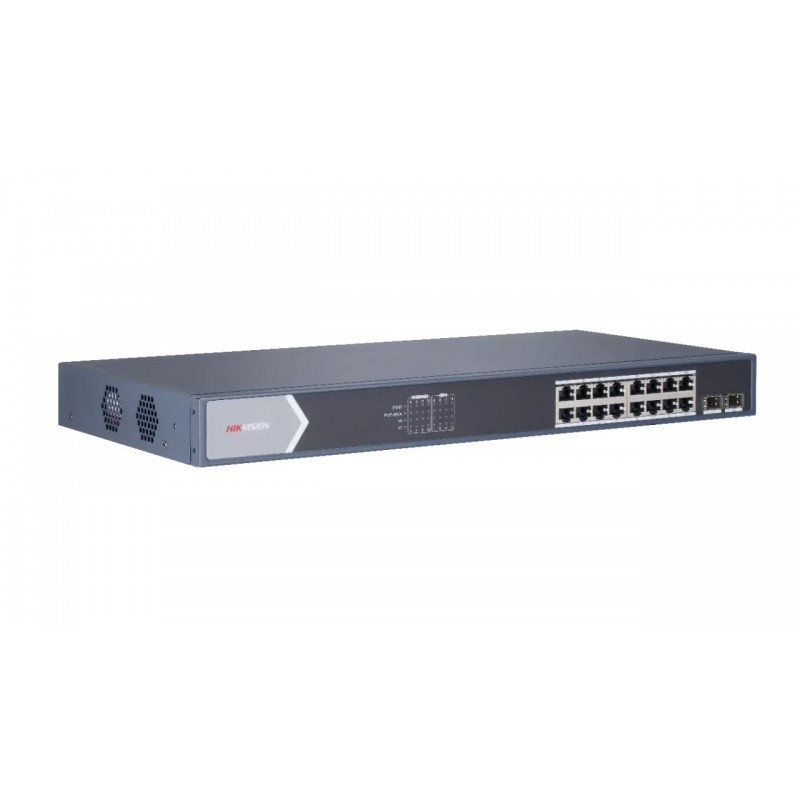

Hikvision DS-3E0518P-E/M
DS3E0518P E/M
New product
16 Port Gigabit Unmanaged POE Switch:
DS-3E0518P-E switches are layer 2 gigabit PoE unmanaged switches, providing 16 gigabit PoE ports, one 10/100/1000 Mbps RJ45 port, and one 10/100/1000 Mbps SFP fiber optical port. The switches provide advanced PoE technology and connect other devices with high performance.
This product is no longer in stock
WhatsApp
Rating:
Be the first to write a review!
More info
Product Information:
Hikvision DS-3E0518P-E/M Features and Benefits
Features:
Hikvision DS-3E0518P-E/M Description
Specification:
- 16 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports
- IEEE 802.3at/af standard
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard
- 6 KV surge protection for PoE ports
- PoE power management
- Gigabit network access
- Wire-speed forwarding
- Store-and-forward switching
- Solid high-strength metal shell
Networking Parameters:
- Ports: 16 × Gigabit PoE ports, and 2 × Gigabit fiber optical ports
- Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
- Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Forwarding Mode: Store-and-forward switching
- MAC Address Table: 8 K
- Switching Capacity: 36 Gbps
- Packet Forwarding Rate: 26.784 Mpps
- Internal Cache: 4.1 Mbits
General:
- Dimensions (W × H × D): 440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
- Shell: Metal material, fan-free design
- Gross Weight: 2.50 kg (5.51 lb)
- Net Weight: 3.57 kg (7.87 lb)
- Operating Temperature: –10 °C to 55 °C (14 °F to 131 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Storage Humidity: 5% to 95% (no condensation)
- Power Supply: 100 to 240 VAC, 50/60 Hz, 2.5 A (Max)
- Power Consumption In Idle: 25 W
- Max. Power Consumption: 150 W
PoE Power Supply:
- PoE Standard: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin: End-span: 1/2(-), 3/6(+)
- PoE Port: Ports 1 to 16
- Max. Port Power: 30 W
- PoE Power Budget: 125 W
